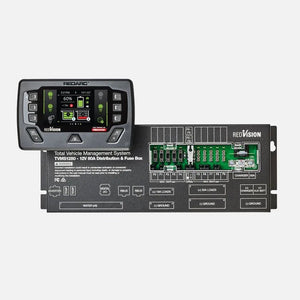

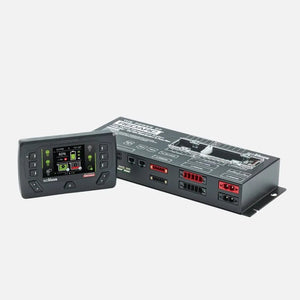

REDARC RedVision Distribution Module and Display

The REDARC RedVision TVMS is a full vehicle management system for camper trailers and mid size caravans. It can handle more than 2 water tanks and both low and high powered devices. Features include 6 tank sensor inputs, a dedicated inverter channel and 80A maximum current capacity. The system has advanced monitoring and control through the Manager30 battery manager which ensures battery health and provides real time power usage data. You can control devices like lights, fans, fridges and inverters through the RedVision display or a connected app and automate tasks for convenience.

Specifications

• Power input voltage: 9 - 16V
• Maximum output current: 80A
• Output channels: 5 x 10A and 5 x 30A
• Sensor inputs: 6 tank level, 2 temp, 1 voltage
• Operating temperature: -4℉ to +140℉
• Storage temperature: -40℉ to 185℉

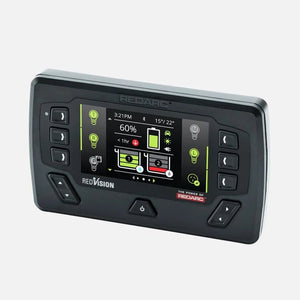

• 4.3" RedVision display included: Yes
• Temperature sensors included: Yes
• Weight: 4.4 lbs.
• Dimensions: 15.2" x 2.3" x 5.4"
