Dirt King Inner Sleeves

$4.00 - $11.00

Precision machined from 1020 steel for strength.
Zinc plated finish for corrosion resistance.
Provides a smooth, durable bearing surface for bushings
Robust construction for harsh off-road conditions.
Designed for use with Dirt King control arm rebuild kits.

Dimensions

Discount available for Military, First Responders, Medical Workers and Teachers

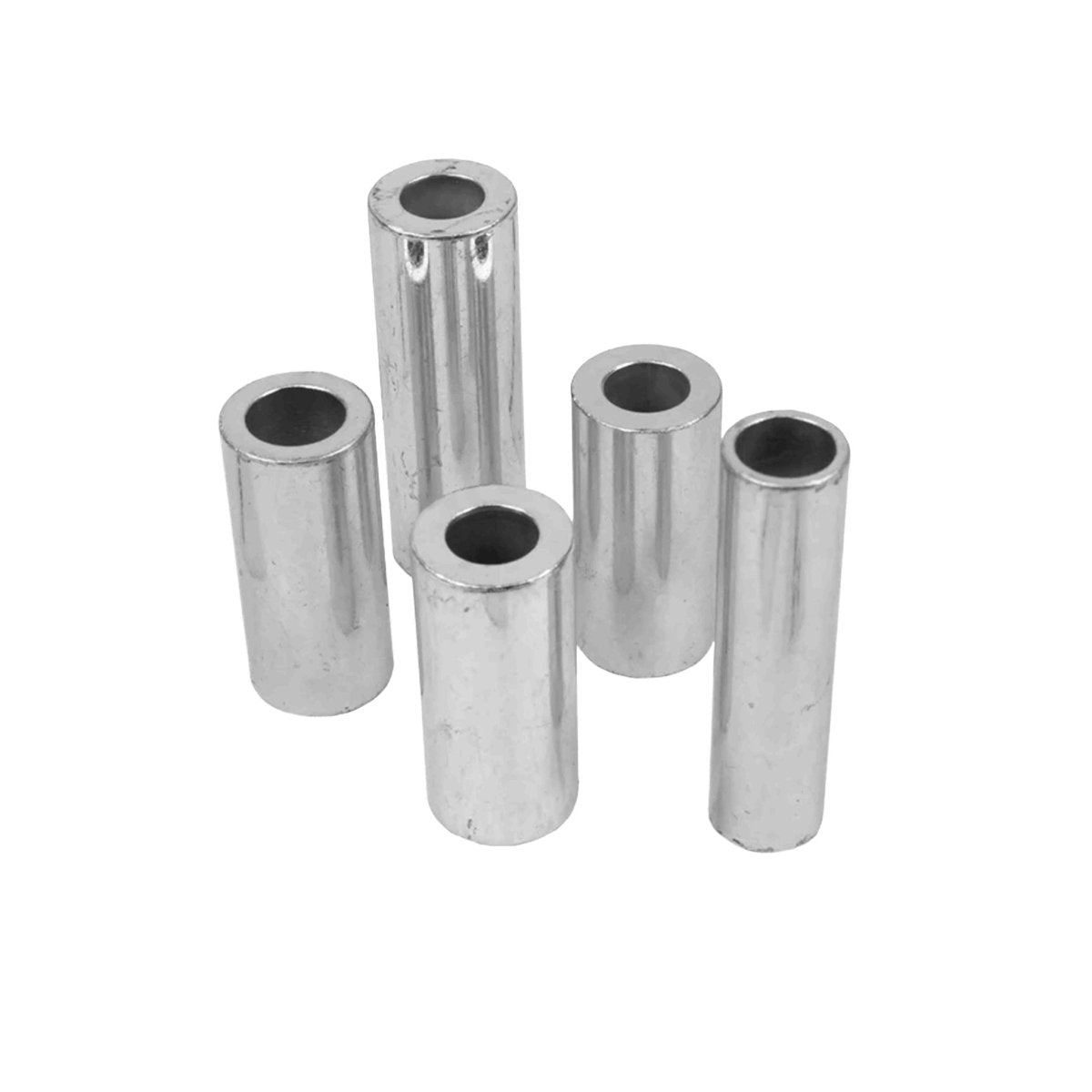

The Dirt King Inner Sleeves are precision-machined suspension components designed to provide a durable bearing surface for control arm bushings. Constructed from solid 1020 steel and finished with zinc plating, these sleeves resist corrosion and wear while maintaining smooth control arm articulation under load.

Specification

Part Number	A	B	C
DK-IB8901960	1.96"	1"	.631"
DK-IB8702125	2.125"	1"	.56"
DK-IB8702144	2.144"	1"	.56"
DK-IB8802206	2.206"	1"	.631"
DK-IB8702206	2.206"	1"	.56"
DK-IB8702470	2.47"	1"	.563"
DK-IB8702530	2.53"	1"	.563"
DK-IB9302768	2.768"	1.125"	.753"
DK-IB9402768	2.768"	1.125"	.828"
DK-IB8702880	2.88"	1"	.563"
DK-IB5402925	2.925"	1.125"	.631"
DK-IB5403020	3.02"	1.125"	.625"
DK-IB5003304	3.304"	1.25"	.906"
DK-IB8703482	3.482"	1"	.560"
DK-IB8903482	3.482"	1"	.631"
DK-IB5403550	3.55"	1.125"	.63"
DK-IB9203702	3.702"	1.125"	.719"
DK-IB9203797	3.797"	1.125"	.719"
DK-IB5403830	3.83"	1.125"	.630"
DK-IB9203930	3.93"	1.125"	.715"
DK-IB9204188	4.188"	1.125"	.709"
DK-IB9204520	4.52"	1.125"	.715"
DK-IB8202720	2.72"	.75"	.560"
DK-IB8203000	3"	.75"	.580"
DK-IB8203450	3.45"	.75"	.560"

Installation

Inner sleeves press into suspension arms or rebuild kits to support bushings. Clean bore, apply grease, and install sleeves using a press or suitable driver tool. Reinstall bushings and hardware according to control arm service procedure.
