Diode Dynamics TRD Pro Grille Light Bar Kit | Toyota Tundra (2022-2024)

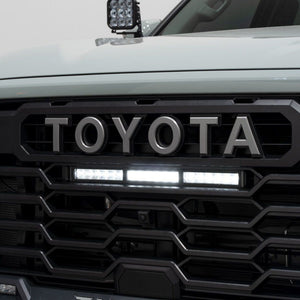

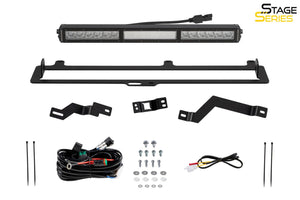

The TRD Pro Grille Light Bar Kit for the 2022+ Toyota Tundra from Diode Dynamics allows you to mount a single Stage Series 18" LED Light Bar in the TRD Pro grille. If you are looking to swap out the light bar on your TRD Pro grille or are converting your grille over to the TRD Pro grille, this kit is perfect for you. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!

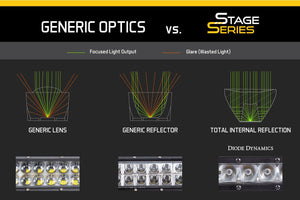

Using optical simulation modeling, Diode Dynamics Stage Series LED light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market.

Specifications

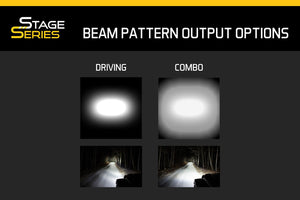

• Beam Angle: Driving, 20°x8°, Combo (Driving and Flood)
• Power (watts): 79.8
• Operating Voltage: 9-24V
• Current (amps @ 14V): 5.7
• Polarity: Polarity Specific
• Operating Temperature: -40C to 85C (-40F to 185F)
• LED Emitter: Luxeon Z ES
• Connector(s): Deutsch DT Input
• Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
• Cooling: Passive, heatsink
• Intrusion Ratings: IP68 Waterproof
• Product Weight (lb): 8.60
• Shipped Weight (lb): 10.6

Installation

Installing the Diode Dynamics TRD Pro Grille Light Bar Kit for the Toyota Tundra is straightforward and can be completed with basic hand tools. Please reference the included instructions.
