Diode Dynamics SS3 LED Fog Light Kit | Toyota 4Runner (2014-2023)

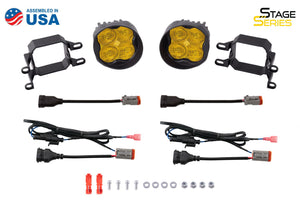

Upgrade the fog lights on your Toyota 4Runner with our SS3 Fog Light Bracket Kit! Featuring higher output intensity than any other 3 inch light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package. With the included angled bezel, the SS3 Fog Kit has a clean, factory-style appearance, only much brighter!

Specifications

• Main Beam Power (watts): Sport: 14.5, Pro: 36, Max: 38.5
• Backlight Power (watts): 0.4
• Main Beam Current (amps @ 12.8V): Sport: 1.1, Pro: 2.7, Max: 3
• Backlight Current (amps @ 12.8V): 0.03
• Operating Voltage: Backlit: 9-30V, Non-Backlit: 9-16V
• Polarity: Polarity Specific
• Operating Temperature: -40C to 85C (-40F to 185F)
• LED Emitter: Luxeon Z ES, Cree XP-L HI, Osram Boost HX
• Connector(s): Deutsch DT Input
• Driver Features: Constant Current
• Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
• Cooling: Passive, Pin-Fin heatsink
• Compliance Ratings: SAE J575 Durability Test
• Intrusion Ratings: IP69K Waterproof, High Pressure
• Unit Weight (lb): 0.56
• Product Weight (lb): 0.81

Installation

Installing the Diode Dynamics SS3 LED Fog Light Kit for the Toyota 4Runner is straightforward and can be completed with basic hand tools. Please reference the included instructions.
