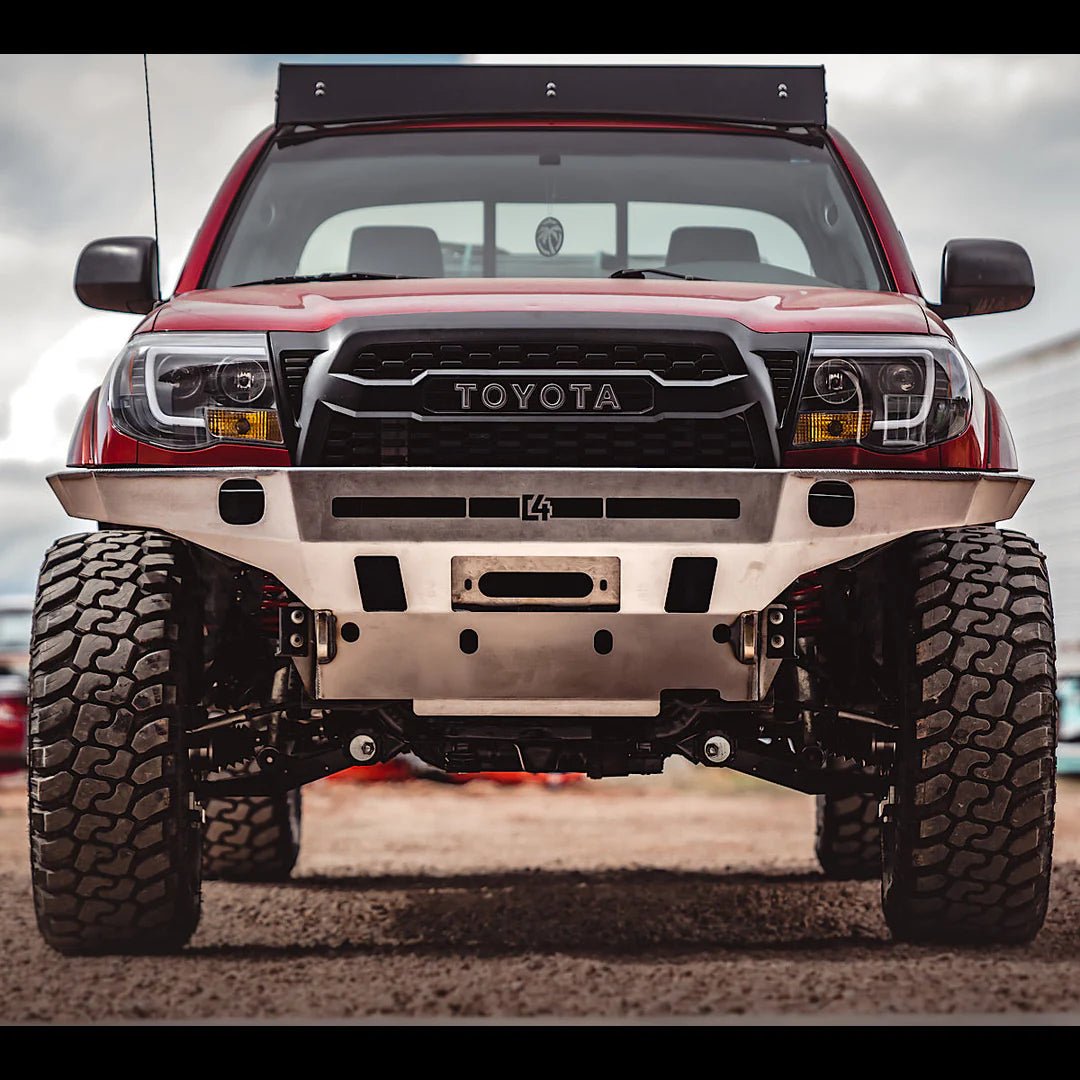

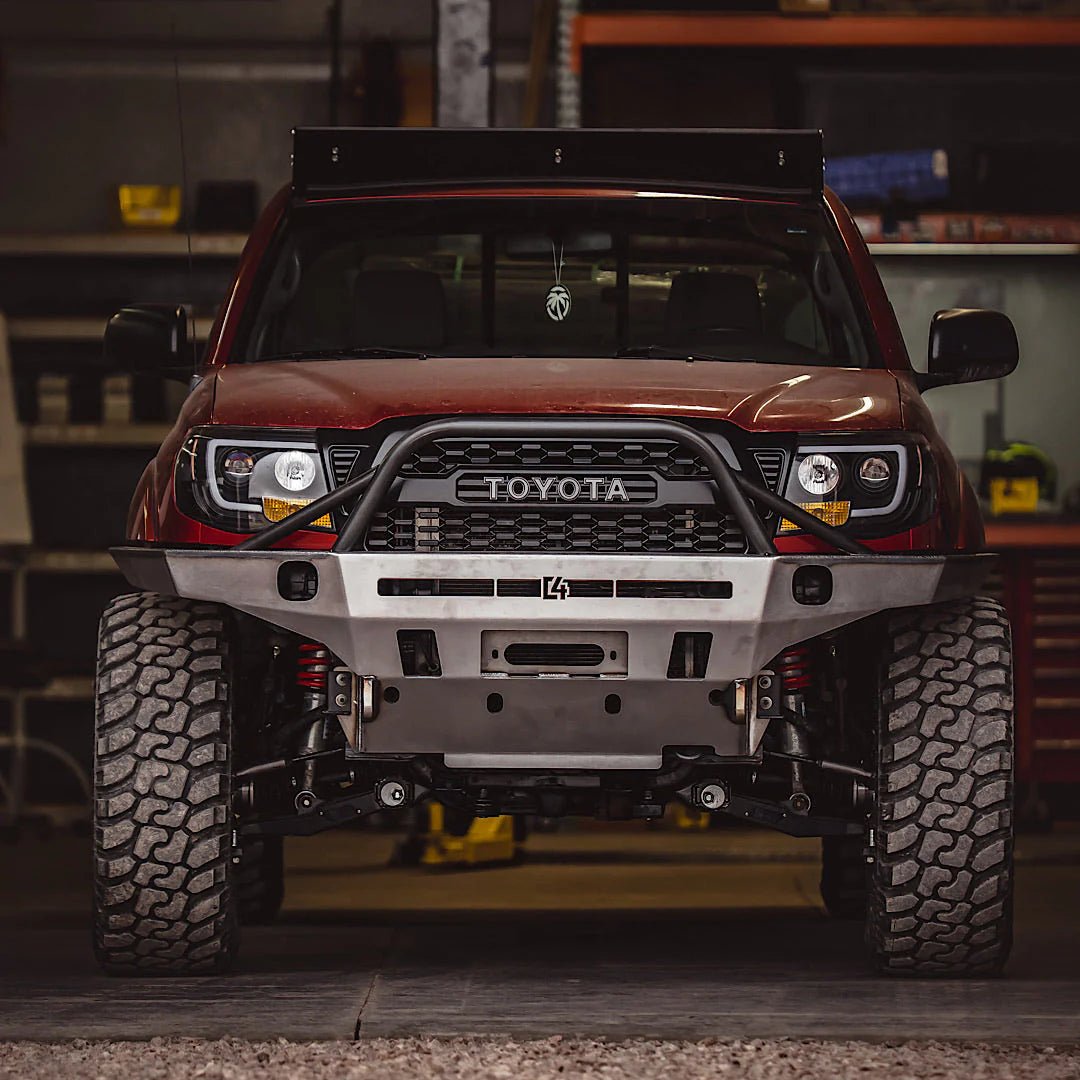

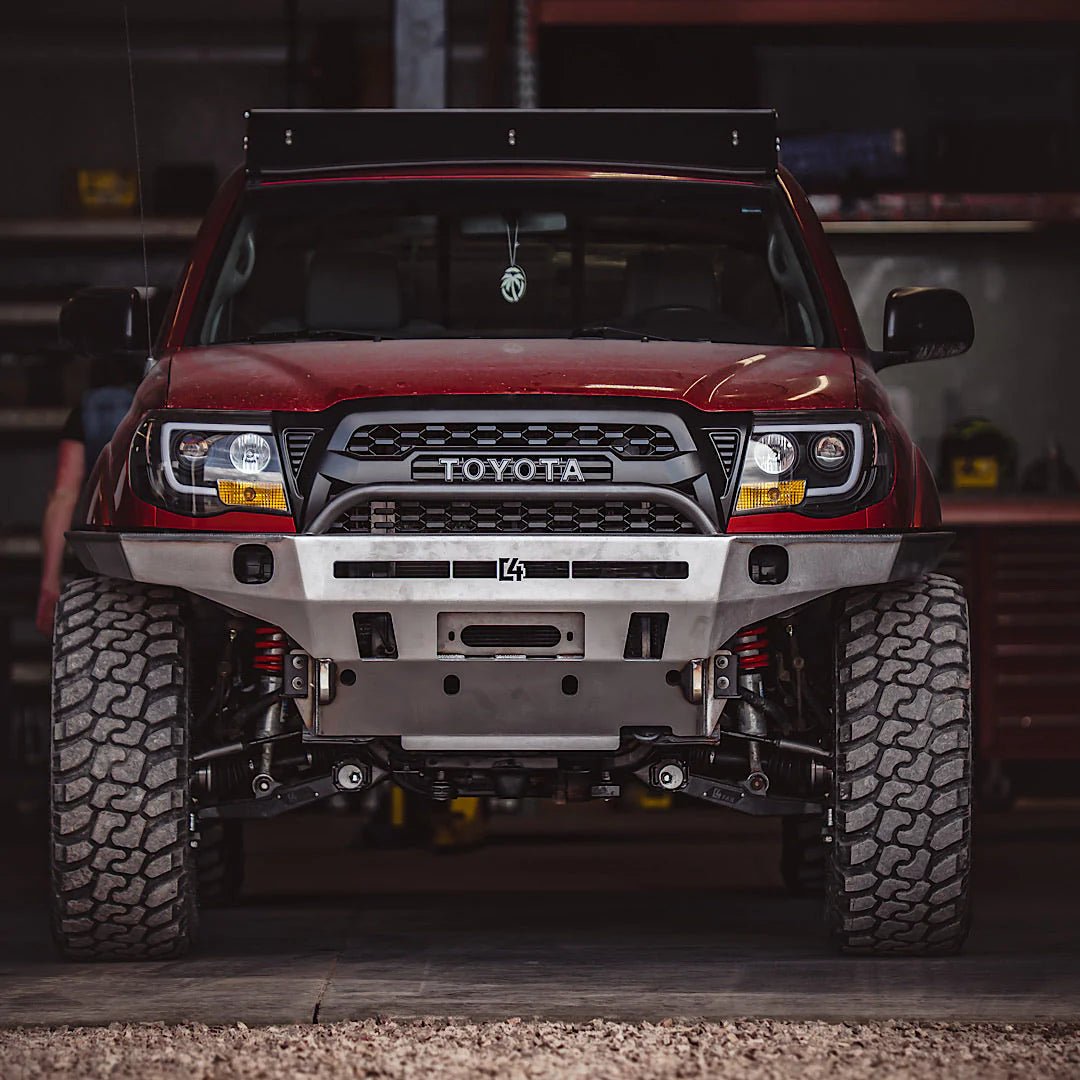

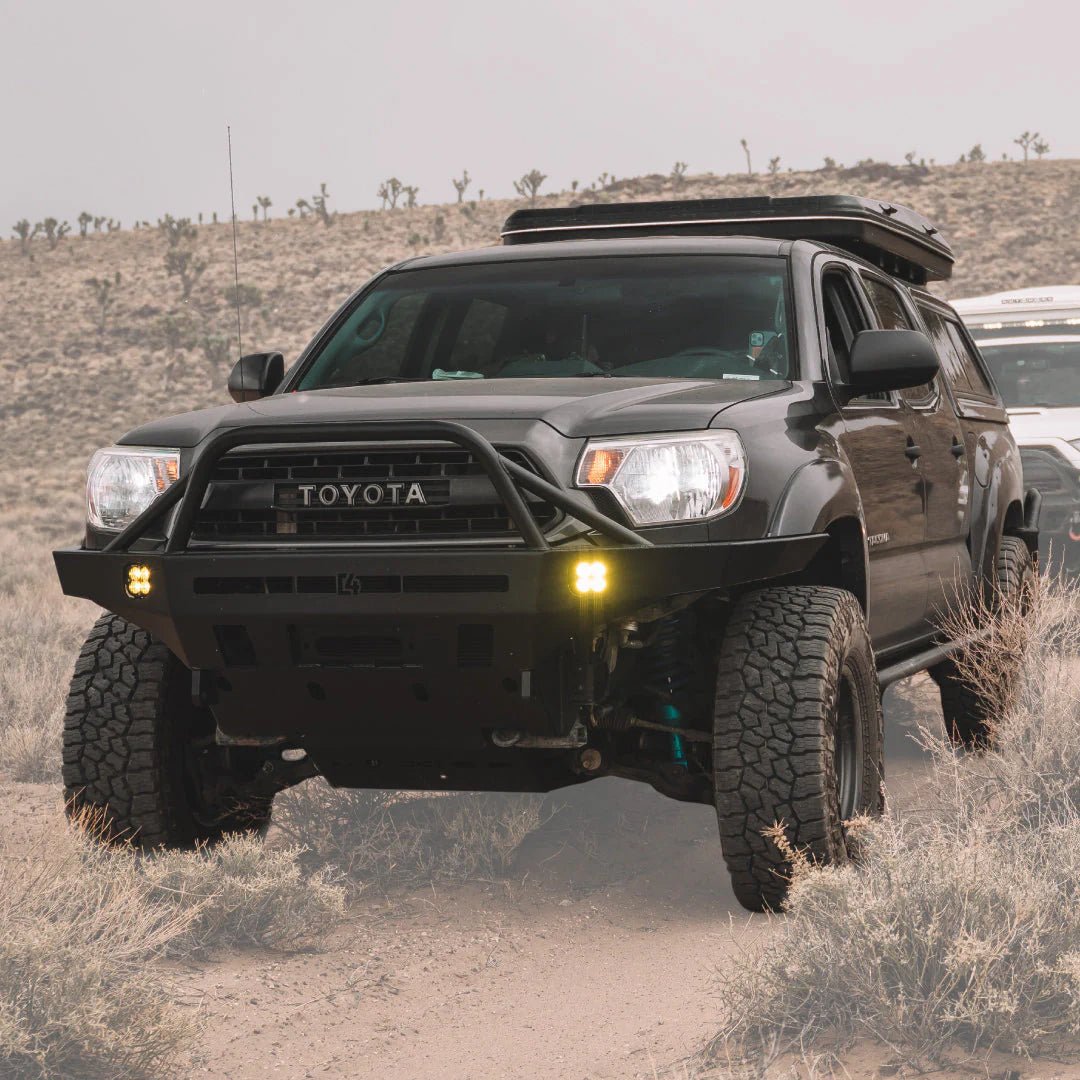

C4 Fabrication Overland Series Front Bumper | Toyota Tacoma (2012-2015)

The C4 Fabrication Overland Series Front Bumper for the 2012–2015 Toyota Tacoma is built to deliver superior front-end protection, improved approach angles, and enhanced off-road capability. Designed with aggressive styling and high-clearance geometry, this bumper provides the strength and functionality needed for serious trail use while maintaining a clean integrated appearance.

Constructed from heavy-duty laser-cut P&O steel with reinforced mounting points, the bumper is engineered to withstand demanding off-road conditions and recovery situations. Integrated winch compatibility, light mounting provisions, and optional bull bar configurations allow the bumper to adapt to a wide variety of overland and off-road builds.

Its fully bolt-on design simplifies installation while additional frame support brackets improve overall structural rigidity during recovery operations. Whether navigating technical terrain or building a complete overland Tacoma, this bumper delivers durability, utility, and trail-ready performance.

Specifications

• Main Material: 3/16" Laser-Cut P&O Steel
• Mounting Plates: 1/4" Steel Mounting Plates
• D-Ring Mounts: 3/4" Fully Welded Recovery Tabs
• Bull Bar Tubing: 1.75" Diameter HREW Steel Tubing
• Tubing Wall Thickness: .120 Wall Thickness
• Weight: 125 lbs (No Bull Bar)

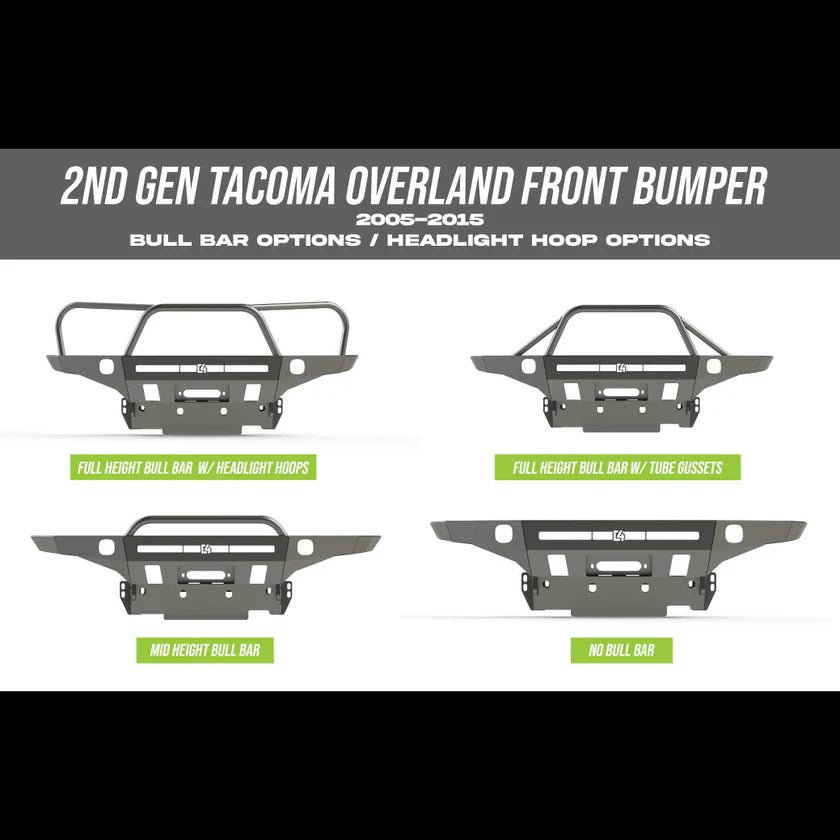

• Weight w/ Mid Bull Bar: 130 lbs
• Weight w/ Full Bull Bar: 140 lbs
• Weight w/ Headlight Hoops: 145 lbs

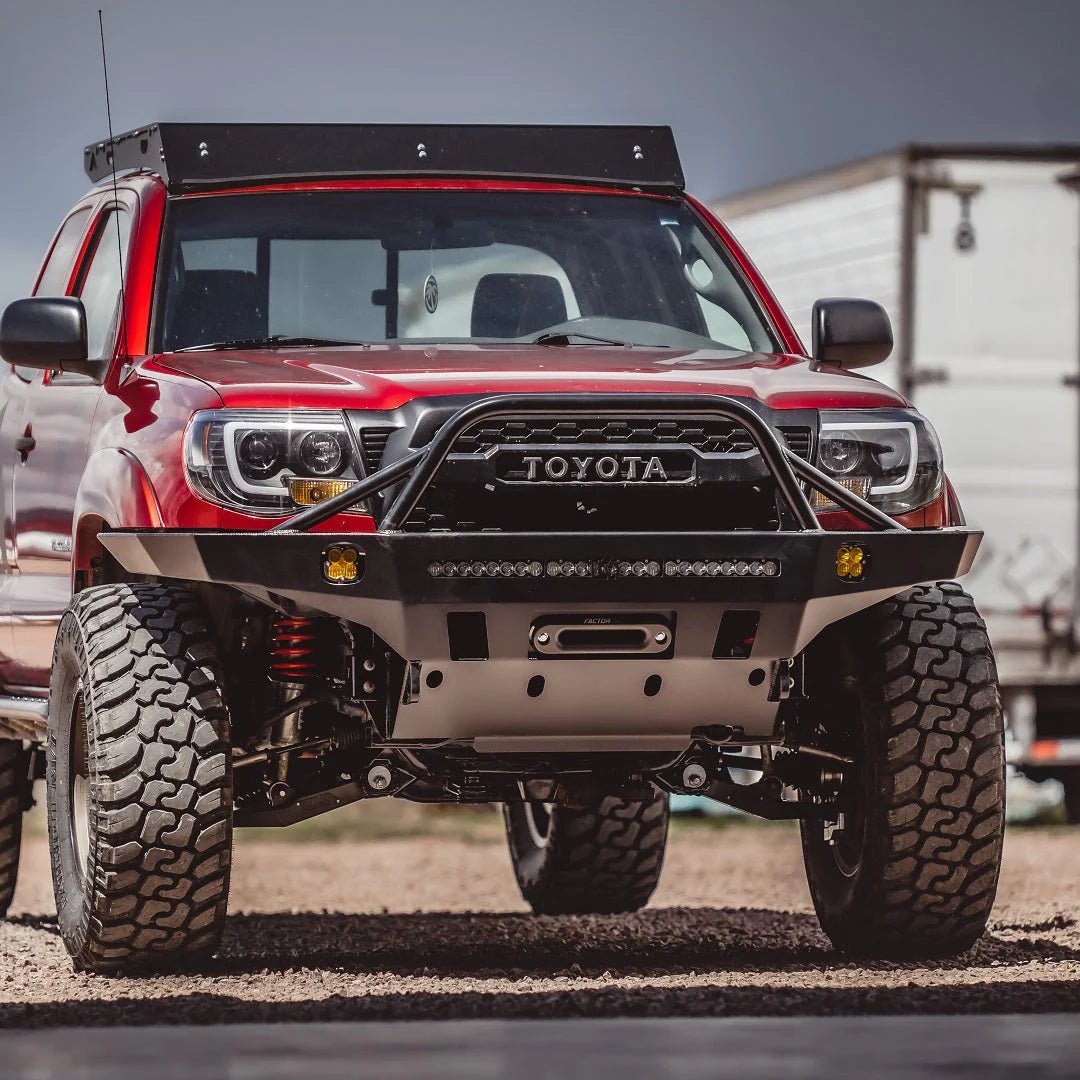

• Light Bar Compatibility: 30" Single Row LED Light Bars
• Fog Light Compatibility: Baja Designs Squadron Lights
• Winch Compatibility: 8k–12k Winches
• Finish Options: Raw Steel or Powder Coat
• Installation Type: Bolt-On Installation

Installation

The bumper installs using a fully bolt-on design with included mounting hardware and frame support brackets. Minor trimming is required for 2012–2015 Tacoma models, but no welding is necessary for installation.
