Dirt King Long Travel Kit | Ford F-150 (2004-2008)

The Dirt King Long Travel Kit (DK-922908) is a high-performance front suspension upgrade developed to dramatically improve off-road handling and wheel articulation on 2004–2008 Ford F-150 trucks while maintaining daily-drive comfort. This CAD-designed system provides up to 12″ of wheel travel, accepts up to 37″ tires, and widens the front track for greater stability and control on rugged terrain. Designed to work on both 2WD and 4WD models (4WD requires extended axle shafts), it features robust arms and geometry that allow for enhanced articulation without compromising strength.

Upper and lower control arms use 1″ stainless steel uniballs (or poly bushings option) instead of weaker ball joints for durability and articulation. The kit includes limit straps, extended brake lines, alignment cams, and other components to help get your build installed and dialed, with the option to add bypass shocks for premium dampening.

Specifications

• Wheel Travel: 12”
• Amount of Lift: 0-2.5”
• Track Width: 3.5” wider per side
• Maximum Tire Size: 37”
• Maximum Backspacing: 4.75”
• Minimum Rim Size: 17”
• 4WD Coil Over Shock Size: King or Fox OEM replacement with 700lb springs
• 2WD Coil Over Shock Size: 2.5” x 8”
• Bypass Shock Size: 3.0” x 8”
• Compatible with Sway Bar: Yes (DK-900955)

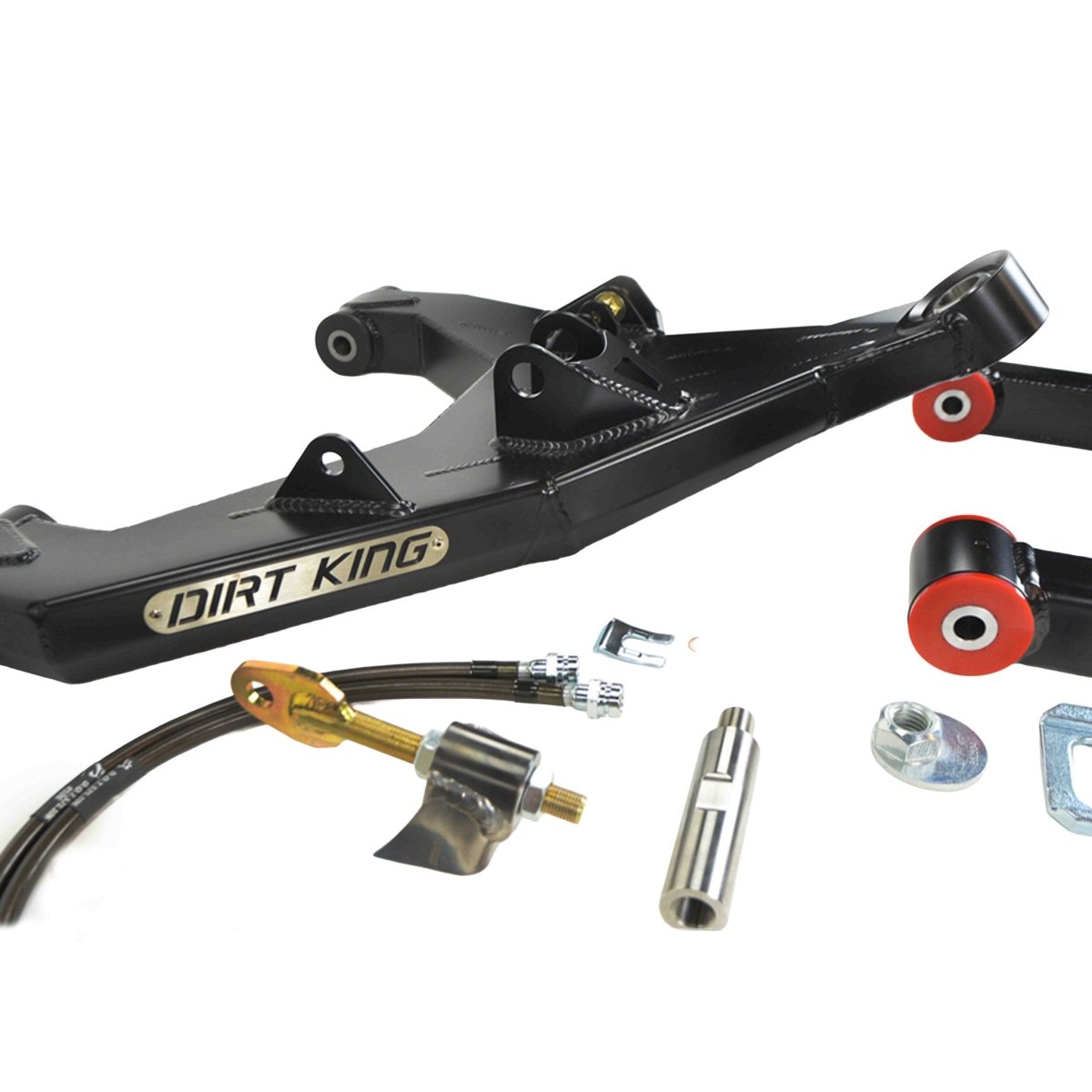

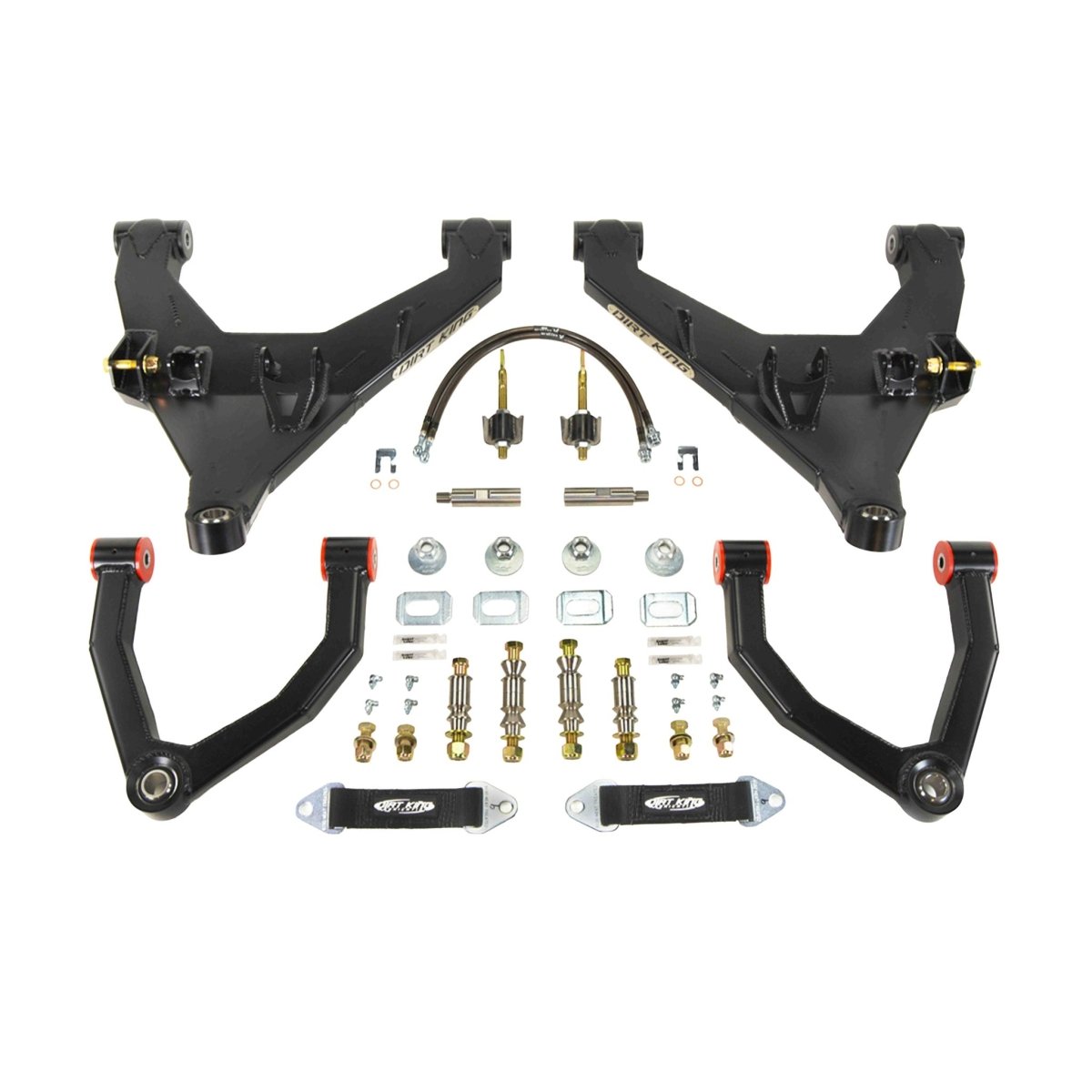

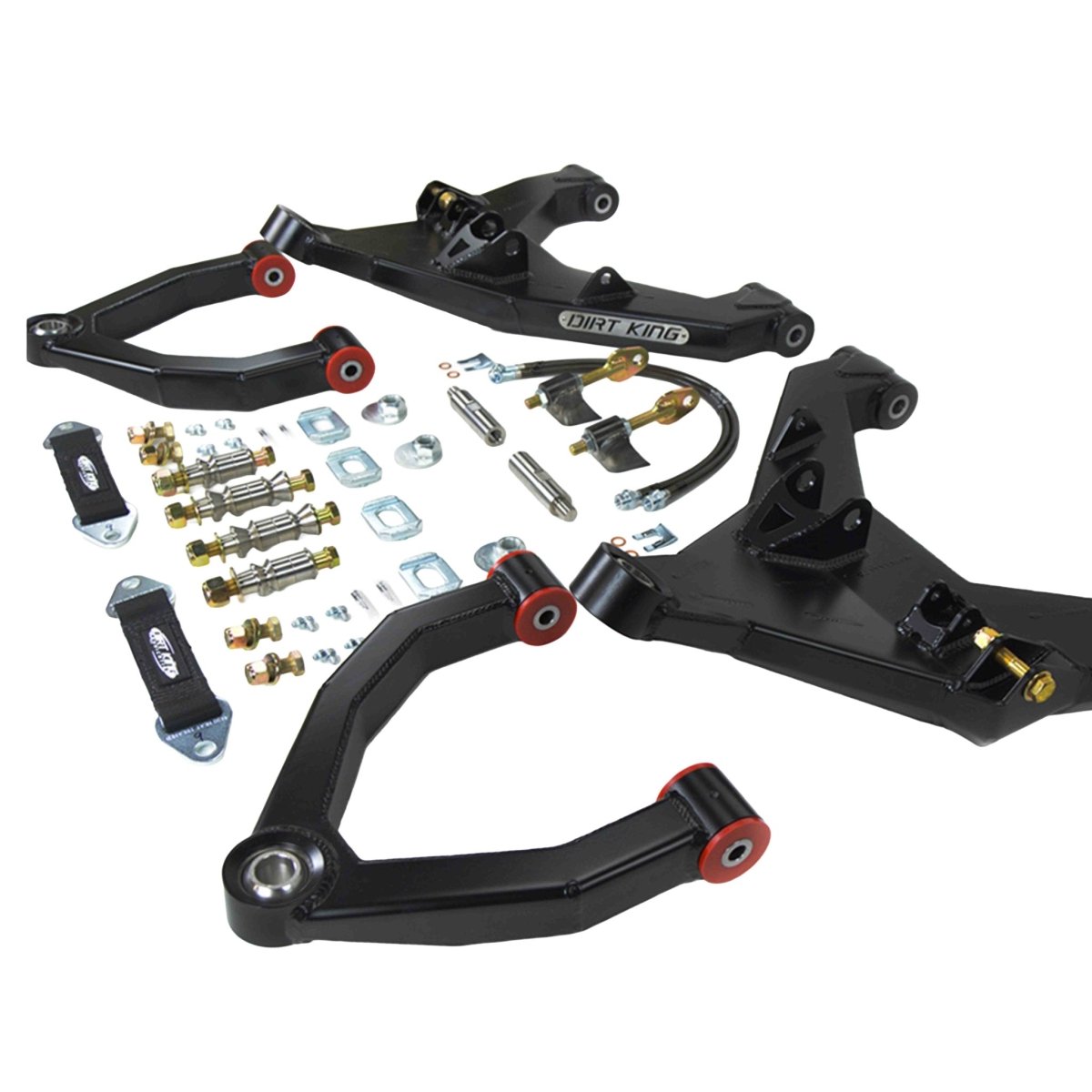

What's Included

• Boxed plate upper control arms
• Boxed plate lower control arms
• 9" quad wrapped limit straps
• Weld on adjustable limit strap mounts
• 17-4 stainless steel misalignment spacers
• 17-4 stainless steel tie rod extensions
• DOT approved extended brake lines
• Grade 8 mounting hardware
• Lower arm alignment cams

Features

• Bolt on application, minimal modifications required
• Utilizes Probearing bearings
• 4130 chromoly uniball cups
• Choice of  ¾” heims or poly bushings for the UCA’s
• Delrin bushings for the LCA’s
• Zinc plated inner bushing sleeves
• Grease fittings for easy servicing

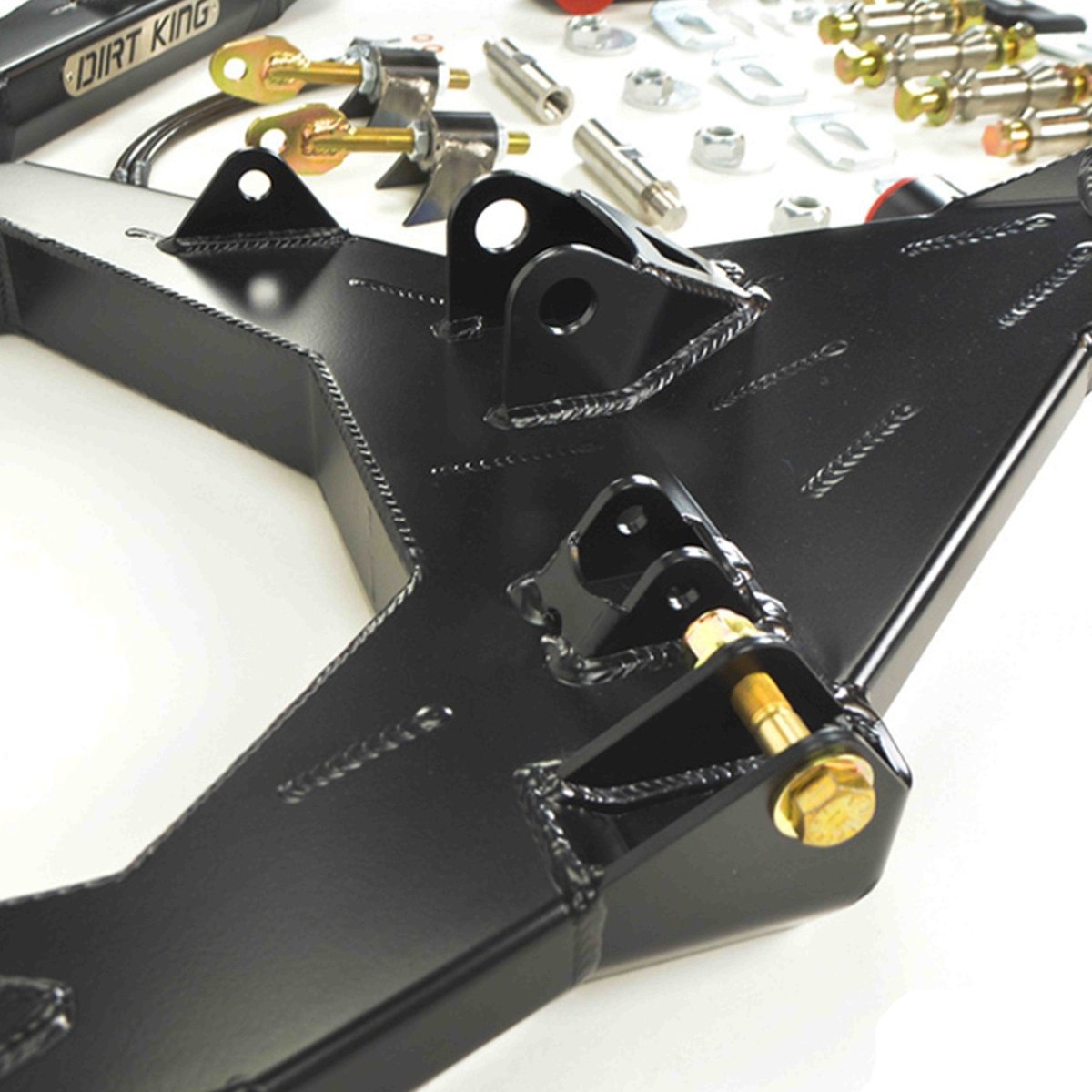

• 3/16" and 1/8” boxed plate construction
• Internally ribbed with extrusions for weight reduction
• Limit strap tabbing
• Bypass tabbing
• Ability to adapt factory sway bar

Compatibility

Ford F-150 2WD / 4WD 2004-2008

Front fiberglass required.

This product is designed to pair with OEM and Dirt King parts. Compatibility with other brands must be approved by the respective manufacturer.

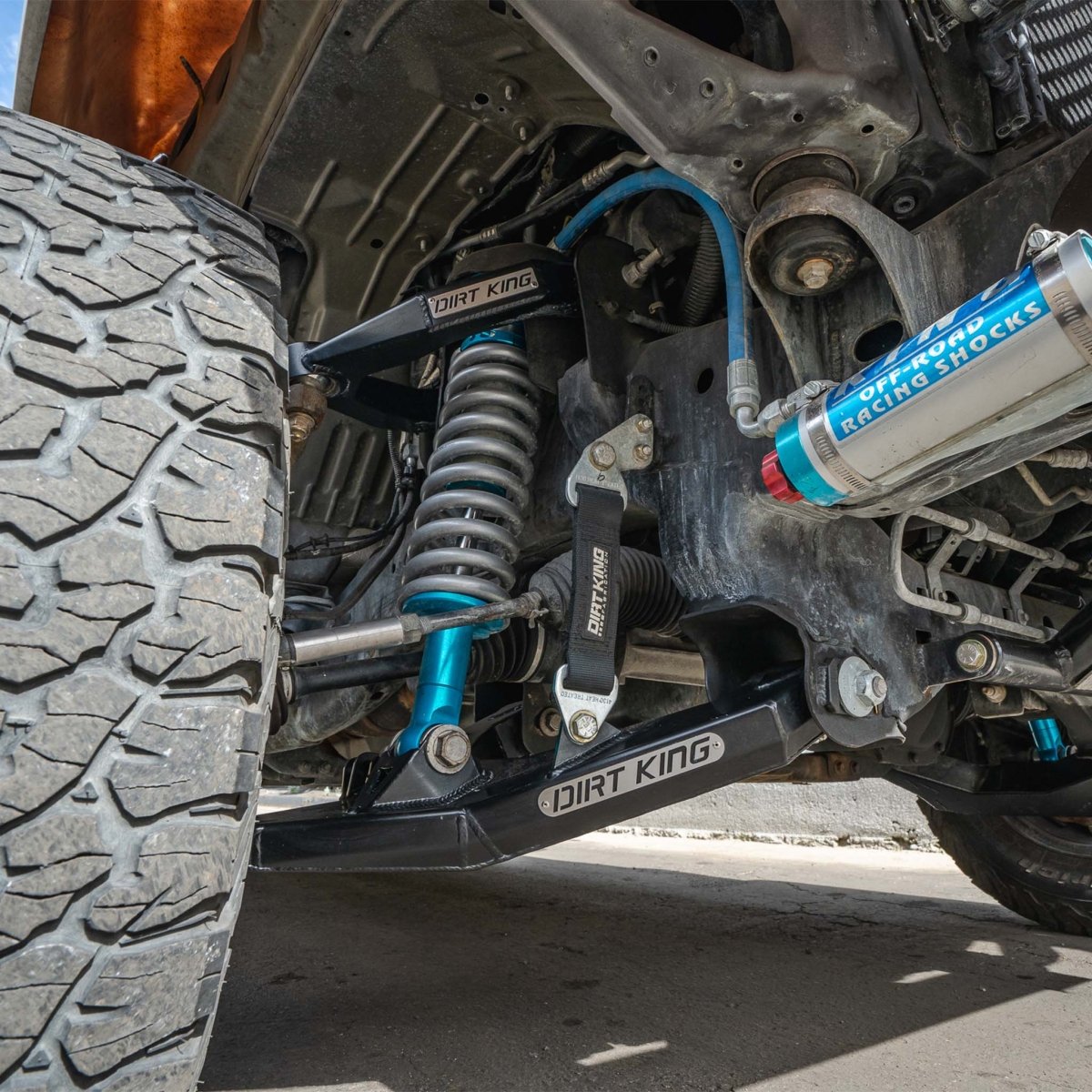

Installation

Install the long travel kit by replacing the factory upper and lower front control arms with Dirt King boxed arms, mounting limit straps and extended brake lines, and installing alignment cams. Minor wheel well and firewall pinch-weld trimming may be required for full 37″ tire clearance. Torque all hardware to specifications and perform a professional alignment post-installation.
