Flatline Van Co Decking High Bar Kit

Name: Flatline Van Co Decking High Bar Kit
Brand: Flatline Van Co
Price: 645.0 USD
Availability: InStock

Flatline Van Co

$645.00 - $695.00

Download Installation Guide

Available in multiple widths (47.5″, 54.7″, 58″, 59.75″, 67″, 71″) to fit Promaster roof rack lengths

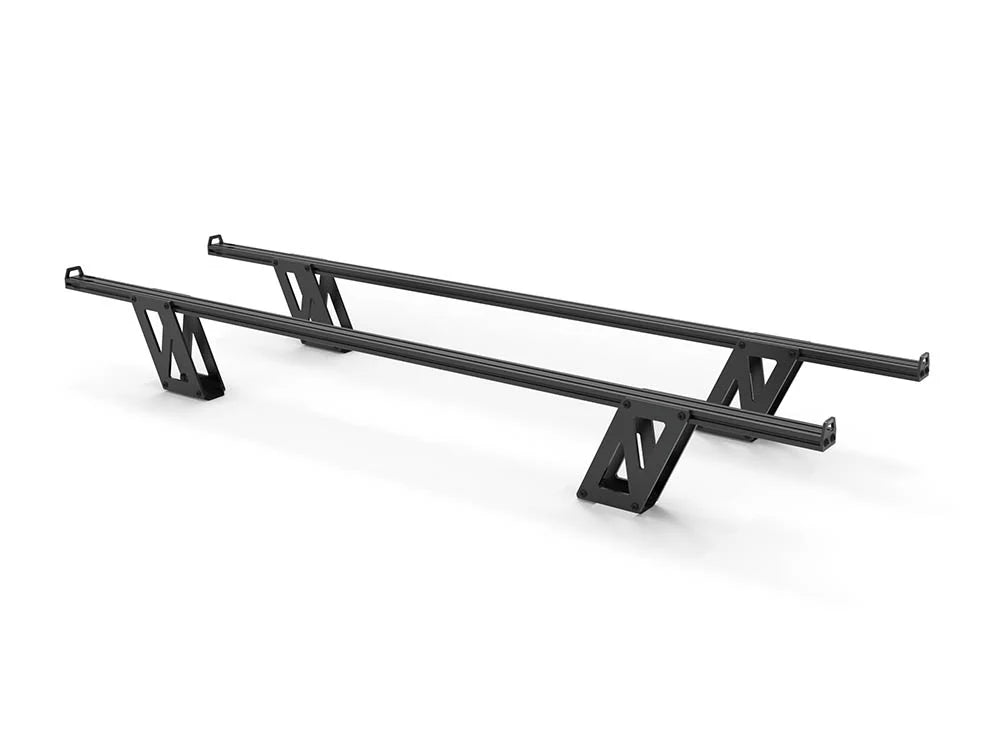

Elevates crossbars approximately 6″–6.5″ above decking panels for added clearance

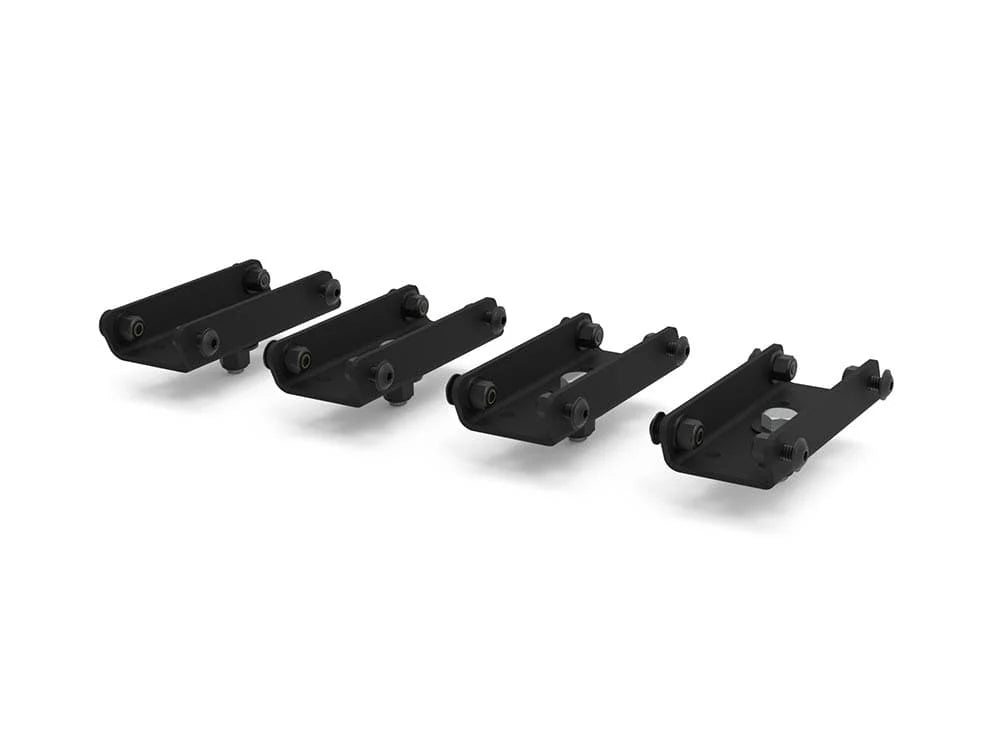

Includes stainless-steel mounting rails, aluminum risers, anodized end caps with integrated strapping loops
Supports mounting for rooftop tents, kayaks, roof boxes, and other elevated gear
End caps feature built-in tie-down loops for straps or cords
Bolt-on installation to existing decking—no drilling or bumper modification required

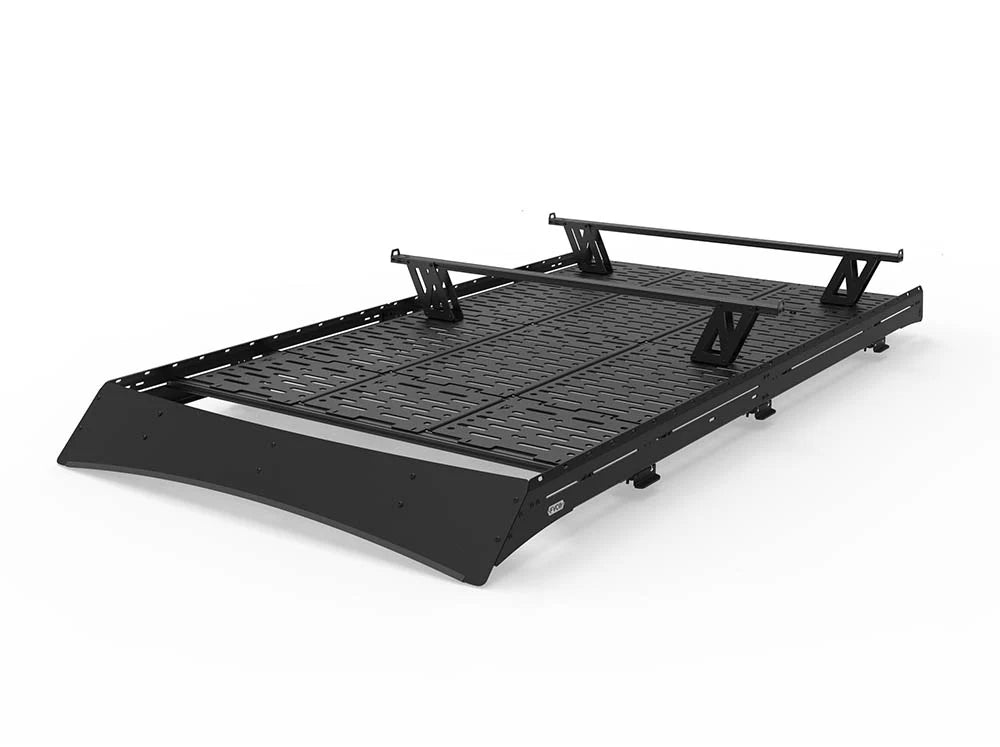

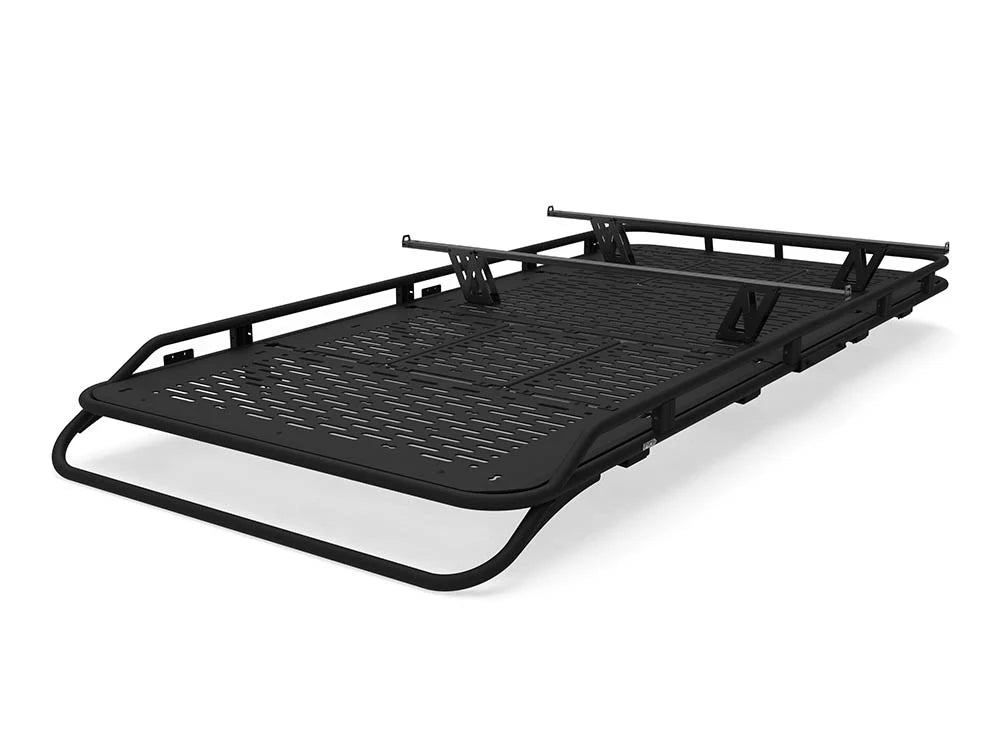

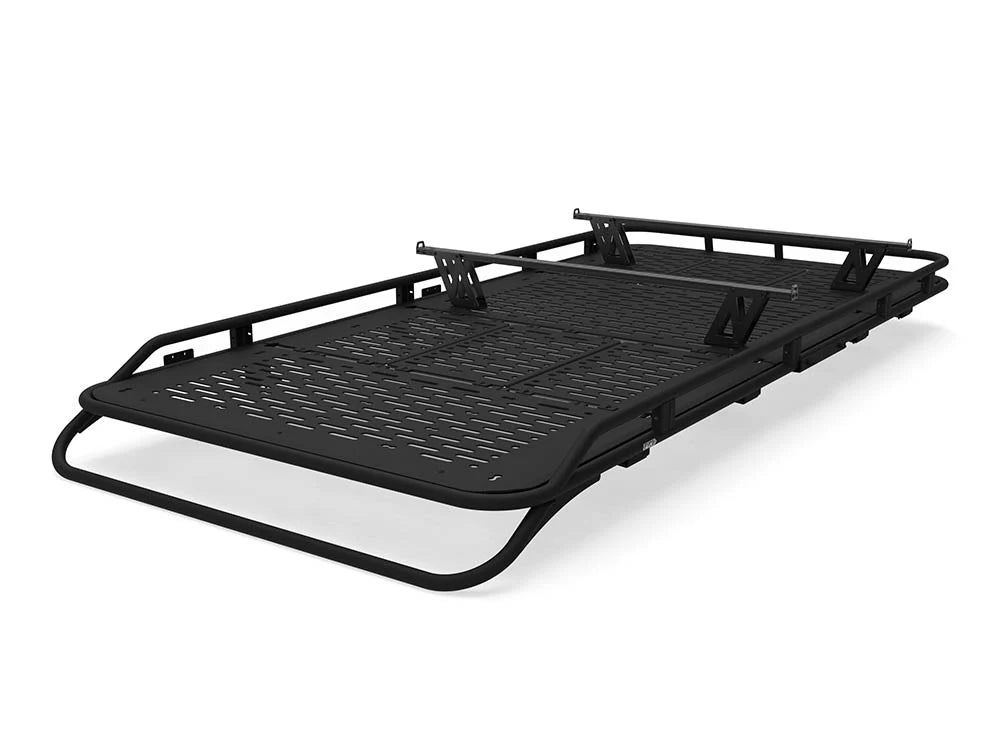

The Decking High Bar Kit boosts your Promaster roof rack’s capability, raising crossbars by approximately 6″ to create a new elevated mounting zone above the decking surface. With width options ranging from 47.5″ up to 71″, the kit integrates smoothly with Flatline’s decking-equipped Low Pro, Standard, or Safari Roof Racks. Built for mounting rooftop tents, kayaks, gear boxes, and more—this kit optimizes vertical space while retaining a clean profile

Engineered with durable aluminum risers, stainless hardware, and anodized caps featuring tie-down loops, the system provides a secure yet flexible platform for accessories. With a recommended dynamic load limit of 250 lb and static support up to 500 lb, the kit serves for both travel and camp storage needs. Its bolt-on decked mount avoids modifications, preserving your van’s OEM layout

Designed for reliable on-road and trail use, the entire kit installs easily onto Flatline decking without requiring any tools beyond standard wrenches. The flush, aerodynamic design minimizes noise and wind drag. Whether you’re setting up for multi-day trips or daily hauling, this Decking High Bar Kit adds high-functionality to your build—crafted in the USA and backed by fast shipping and warranty support

Specifications

Material: 3/16” Anodized Aluminum
Finish: Black Powder Coat
Width: 47.5″ | 54.7″ | 58″ | 59.75″ | 67″ | 71″
Max Weigth Capacity: 250 lb | 500 lb (Static)
High Bar Height: 8.1”
Decking Adapters: 3mm Stainless Steel
Risers: ¼” Aluminum
Hardware Included: Yes (Stainless Steel)
Compatibility: FVC Safari Roof Racks | FVC Roof Racks with Decking Panels

Installation

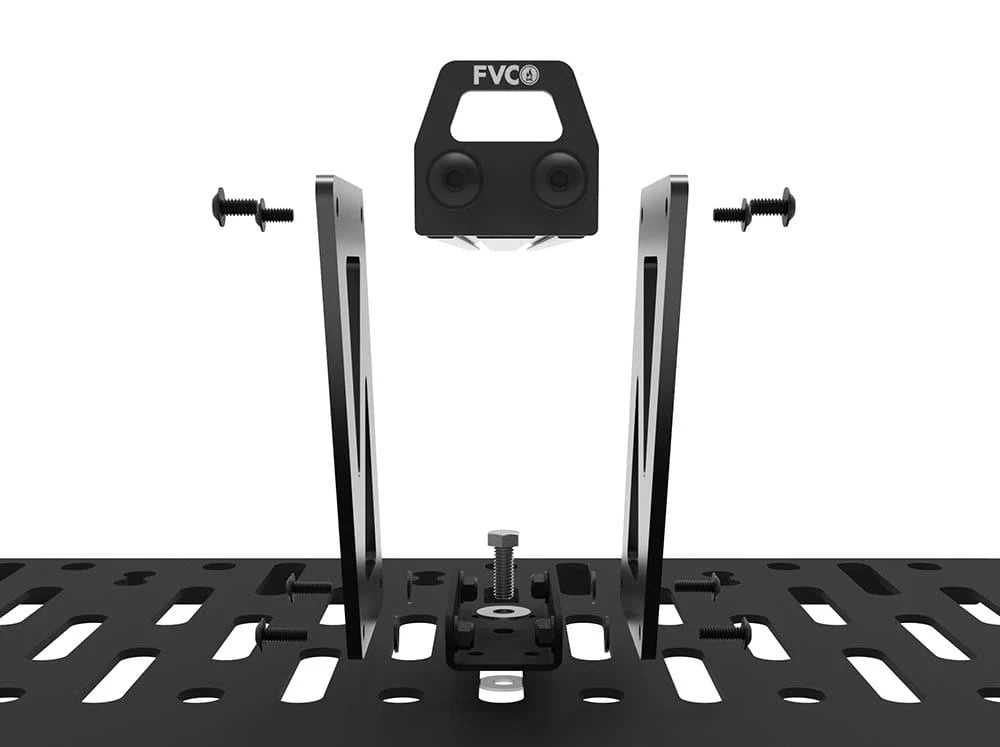

Loosen side rails on the installed Low Pro roof rack. Slide crossbars into desired T-slot positions. Adjust spacing for intended load. Align crossbars perpendicular to van centerline and tighten stainless steel hardware provided. Ensure crossbars are torque-seated per spec. No drilling required—modular install typically completed in ~15 minutes using basic tools.
