Dirt King 4130 Upper Control Arms | Nissan Titan (2016–2023)

The Dirt King 4130 Upper Control Arms are a premium suspension upgrade designed specifically for 2004–2023 Nissan Titan (2WD or 4WD, Non-XD) models that need stronger, quieter, and more capable front control arms. Built to eliminate common issues like squeaky bushings and geometry problems after lifting, these control arms deliver smoother articulation, improved handling, and long-lasting performance on daily drives, overland trips, desert runs, or technical trails.

These arms are constructed from high-strength 4130 chromoly tubing and feature maintenance-free SilentSpin™ bushings that remove the need for grease fittings and help reduce unwanted noise. Heavy-duty Probearing Pro 4 ball joints with sealed dust caps provide superior strength and articulation, while the geometry-corrected design maintains proper caster and pivot angles up to 3″ of lift and provides roughly an inch of additional down travel compared to stock.

Preassembled and ready to install, the Dirt King 4130 UCAs simplify the upgrade process while offering a rebuildable design and corrosion-resistant finishes that hold up under demanding off-road use. Built and tested in the USA, they are engineered to support both everyday reliability and hardcore suspension performance.

Specifications

• Amount of Lift: Allows for 0–3” of lift
• Track Width: Stock
• Maximum Backspacing: 4.75”
• Minimum Rim Size: 17”

What's Included

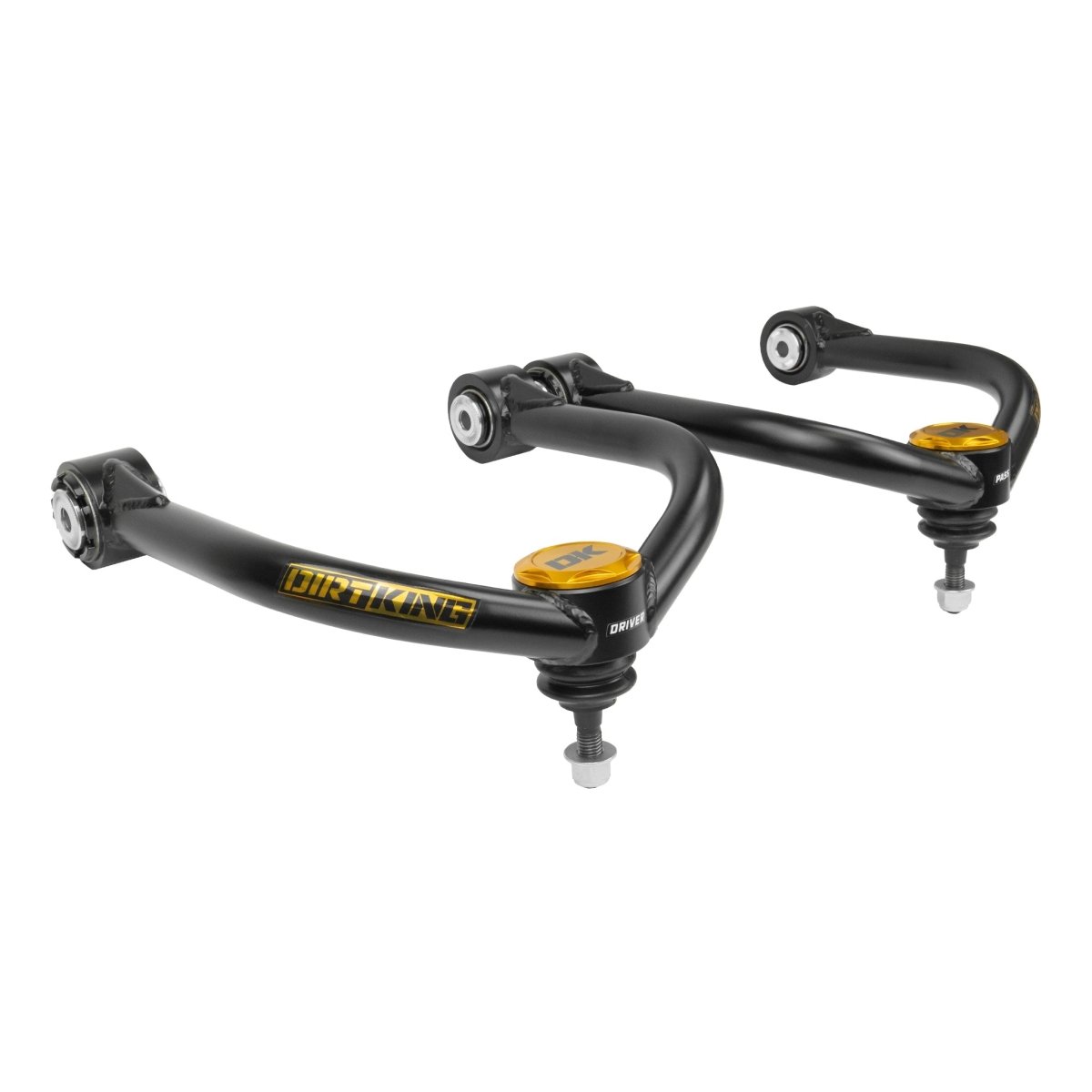

• 4130 Chromoly upper control arms
• Probearing SilentSpin Hybrid bushings
• Probearing Pro 4 Superior Performance Ball Joints
• Ball joint caps
• Dirt King sticker pack

Features

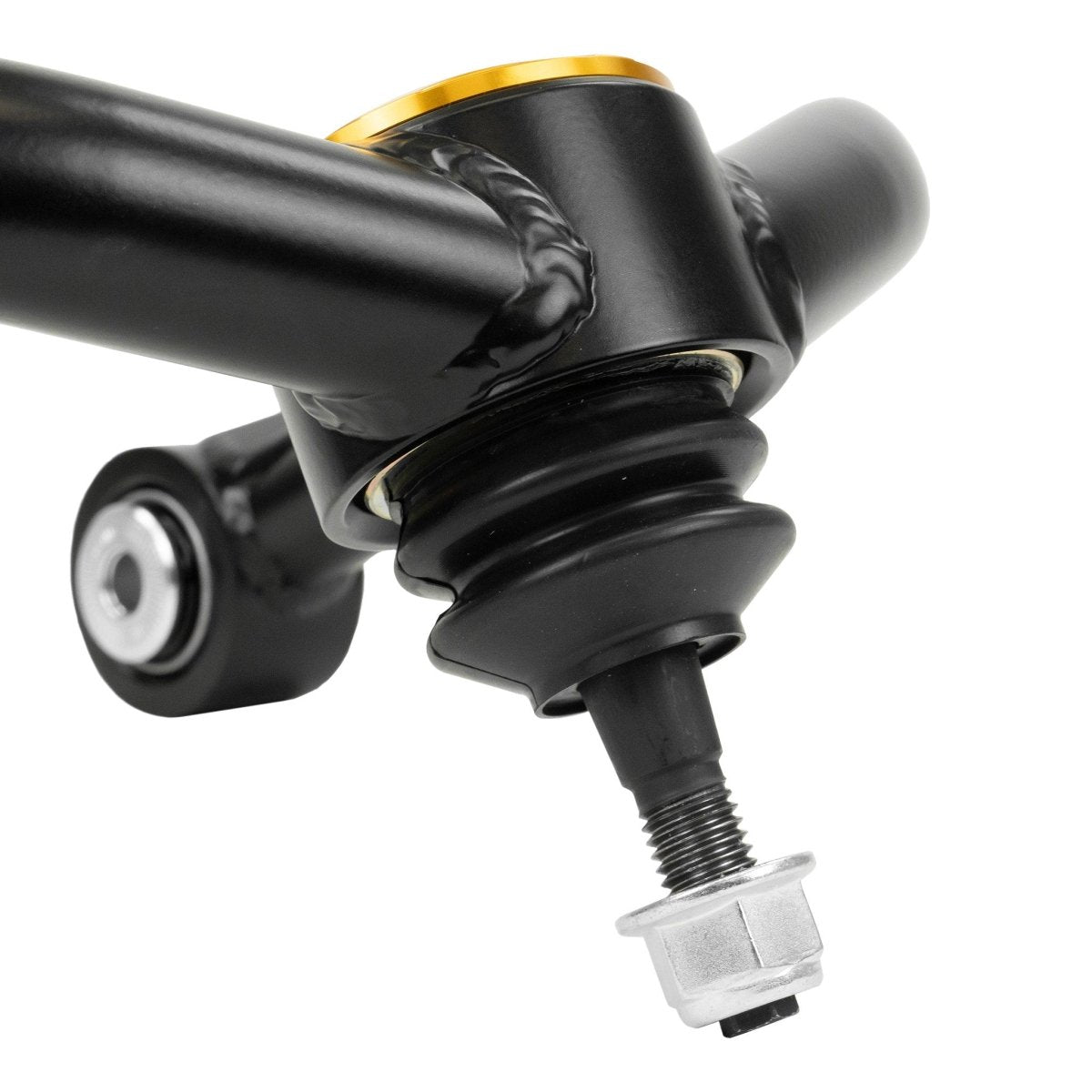

• Pro 4 Series Ball Joints – Forged SAE4140 housing, 34mm ball stud, and induction-hardened construction for maximum strength and smoother steering feel

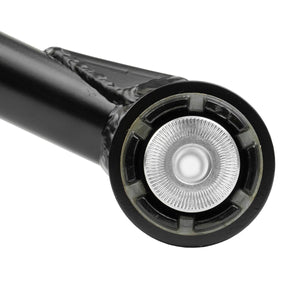

• SilentSpin Hybrid Bushings – Maintenance-free, greaseless, and engineered for quiet, free-spinning articulation
• Geometry Corrected – Improved caster and pivot angles deliver better handling and control with up to 3” of lift
• 4130 Chromoly Construction – Built with high-strength tubing and reinforced gussets for extreme durability
• Fully Rebuildable Design – All wear items are replaceable for long-term reliability
• Corrosion-Resistant Finishes – Zinc-plated hardware and black powder coat protect against the elements
• Professionally MIG Welded – Ensures structural integrity for demanding off-road use
• Preassembled – Quick, hassle-free installation with no guesswork
• Made in the USA – Built with pride and quality you can trust

Compatibility

Nissan Titan 2WD / 4WD Non-XD 2016–2023

This suspension will not work with the 2016 or newer Titan XD models.

This product is designed to pair with OEM and Dirt King parts. Compatibility with other brands must be approved by the respective manufacturer.

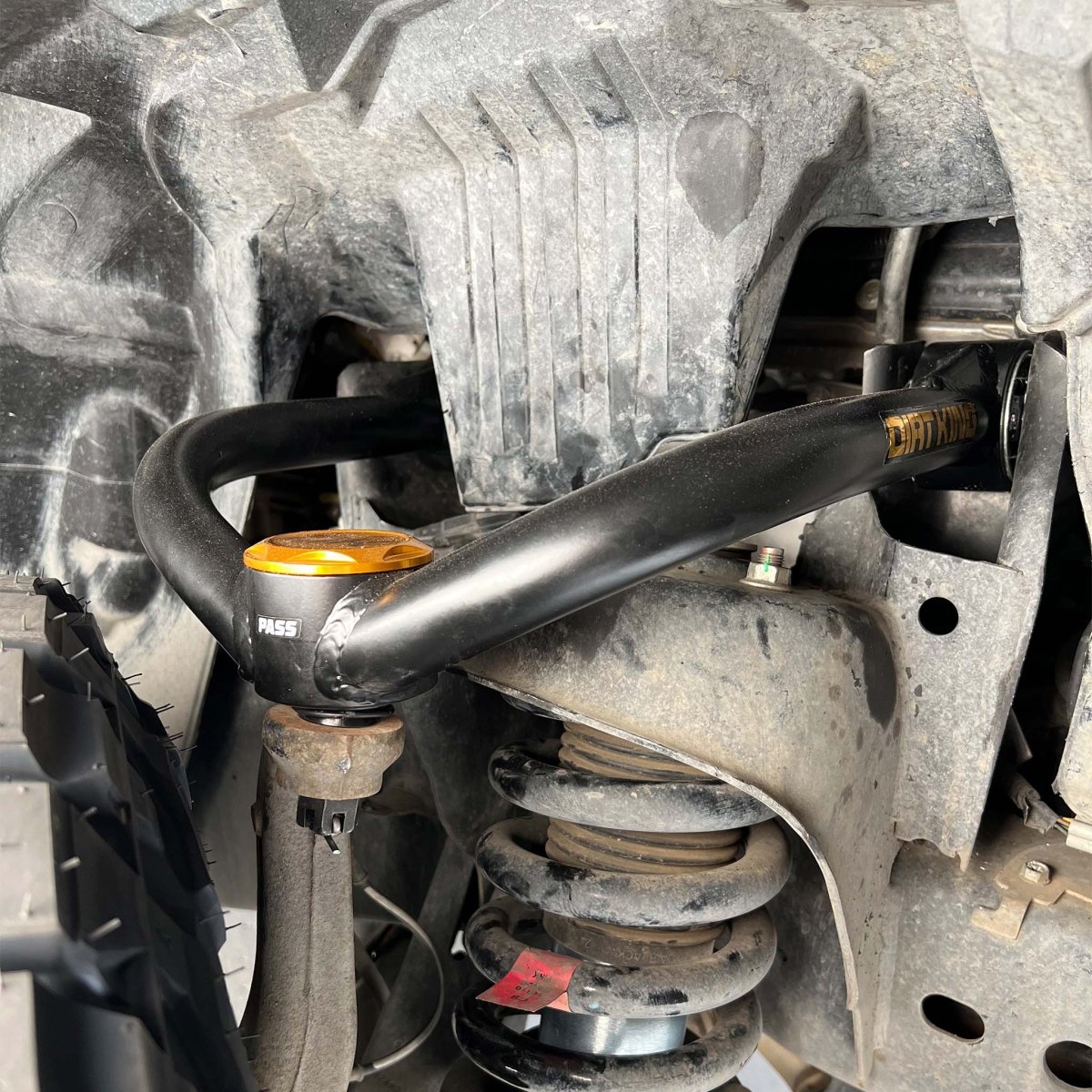

Installation

Remove the OEM upper control arms and install the Dirt King 4130 arms in the same mounting locations using the supplied hardware. Ensure proper alignment of bushings and ball joints, torque fasteners to specification, and follow up with a professional alignment.
