Flatline Van Co Rear Tire Carrier | Ford Transit (2015-2024)

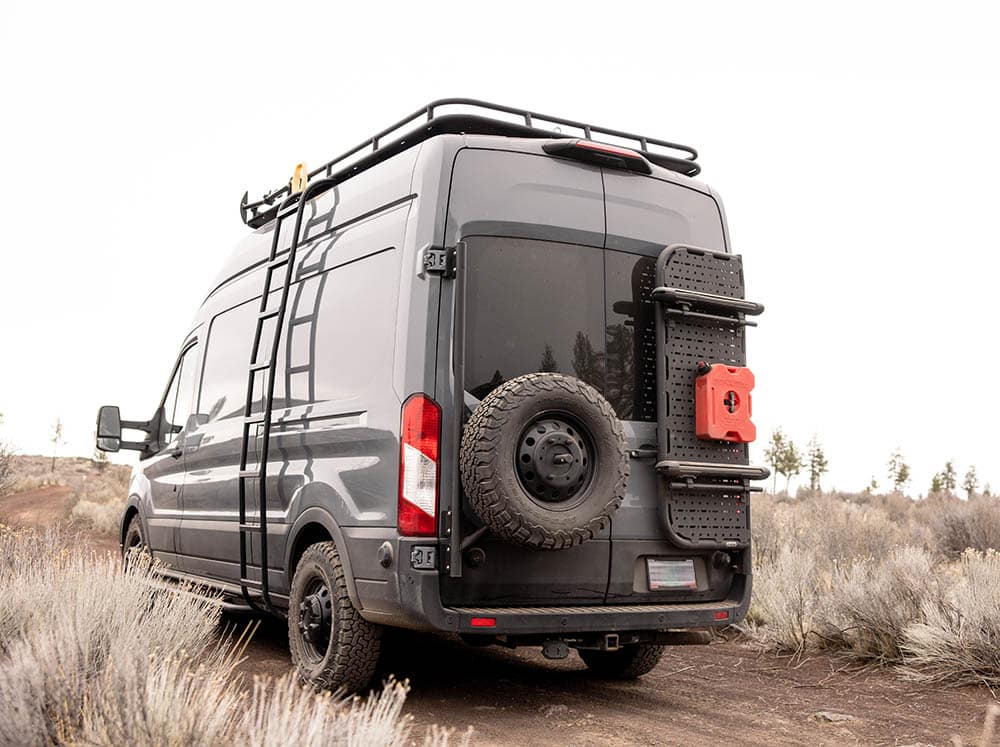

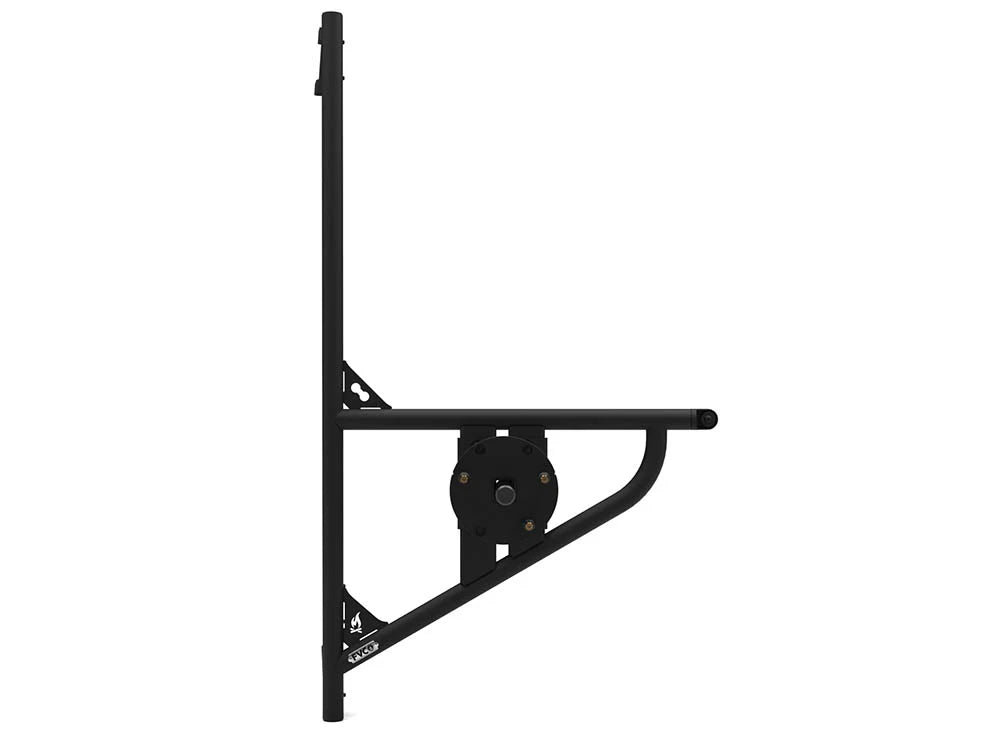

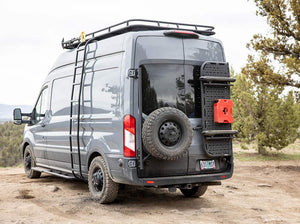

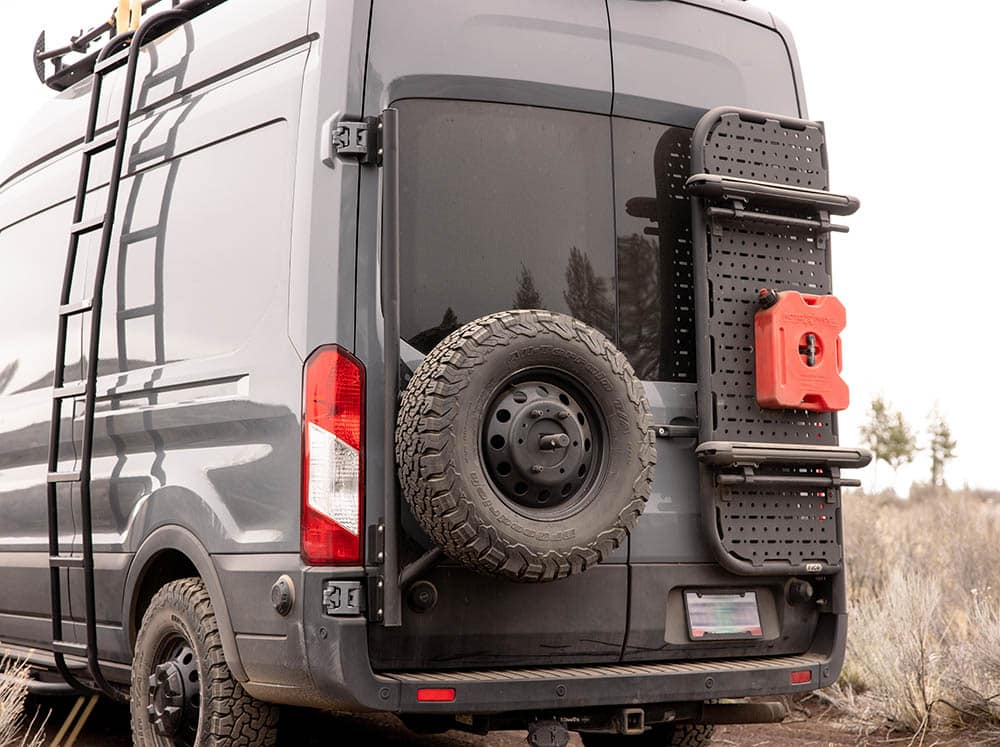

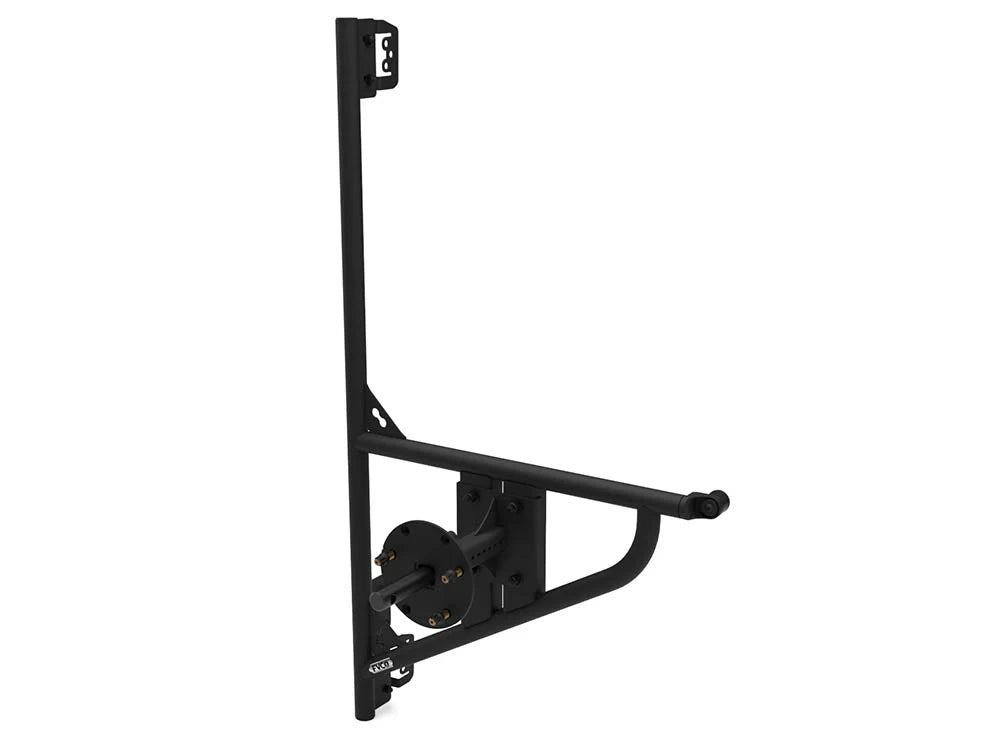

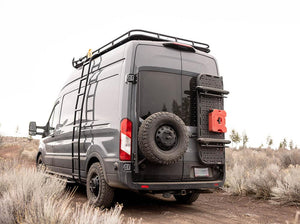

The Transit Rear Tire Carrier relocates your Ford Transit’s spare tire onto the rear door, freeing up underfloor storage space for tanks or gear and making mid-trip tire changes easier. Constructed from sturdy aluminum tubing and stainless brackets, this lightweight carrier holds any Transit-compatible tire size and is designed to withstand repeated use. It features a dual-shock silicone damper that absorbs impacts when closing the door, protecting both the build and the finish.

To accommodate various tire depths, the carrier includes an adjustable lock rod with compatibility for standard hitch locks. All necessary mounting hardware—such as wheel studs, locking lug nuts, and a lug nut key—is included, providing a comprehensive solution straight out of the box.

This solution offers a clean, functional upgrade for builds that prioritize interior storage and spare accessibility. It’s designed to pair with the Transit Trail or standard mid/high-roof models, maintaining a refined look while increasing utility.

Specifications

• Material: Lightweight Aluminum
• Finish: Black Powder Coat
• Lock Rod: Adjustable (Traditional Hitch Lock Compatible)
• Wheel Studs: 14x1.5 , 65mm (10.9 Grade - Black Zinc)
• Dampener: Dual-Shock Silicone
• Fitment:
  • 2015+ Ford Transit Crew and Cargo Vans (mid roof and high roof vans, all wheelbases)
  • 2023+ Ford Transit Trail
  • Compatible with both hinge types

Installation

Remove lower hinge bolts, slide on the mounting brackets, drill a single hole per side, bolt carrier into place, and install wheel studs, tire, and lug nuts. Includes silicone damper to absorb impacts—basic tools required; install takes 2–3 hours.
