Dirt King 3.5" Lift Spindles | Ford F-150 (2004-2008)

The Dirt King 3.5" Lift Spindles are engineered to raise the front end a true 3.5 inches without compromising ride quality or handling. These fabricated spindles are CAD designed and constructed from 1/4″ thick steel plate, making them strong and durable for lifted truck applications. They are uniquely engineered to accept both factory and aftermarket upper and lower control arms, providing flexibility when upgrading suspension.

This lift spindle solution includes all necessary mounting hardware and extended brake components, enabling a complete front lift conversion. The increased front track width enhances stability, but wider tires and modifications to wheel wells or bumpers may be required for full clearance.

Ideal for 2004–2008 Ford F-150 2WD owners seeking a reliable front lift without losing component compatibility or ride quality.

Specifications

• Amount of Lift: 3.5”
• Track Width: 1.75" wider per side
• Maximum Tire Size: 35”
• Maximum Backspacing: 5.25”
• Minimum Rim Size: 17”

Tire Info
If installing 35” tires modifications to the wheel wells and bumper may need to be made for proper tire clearance.

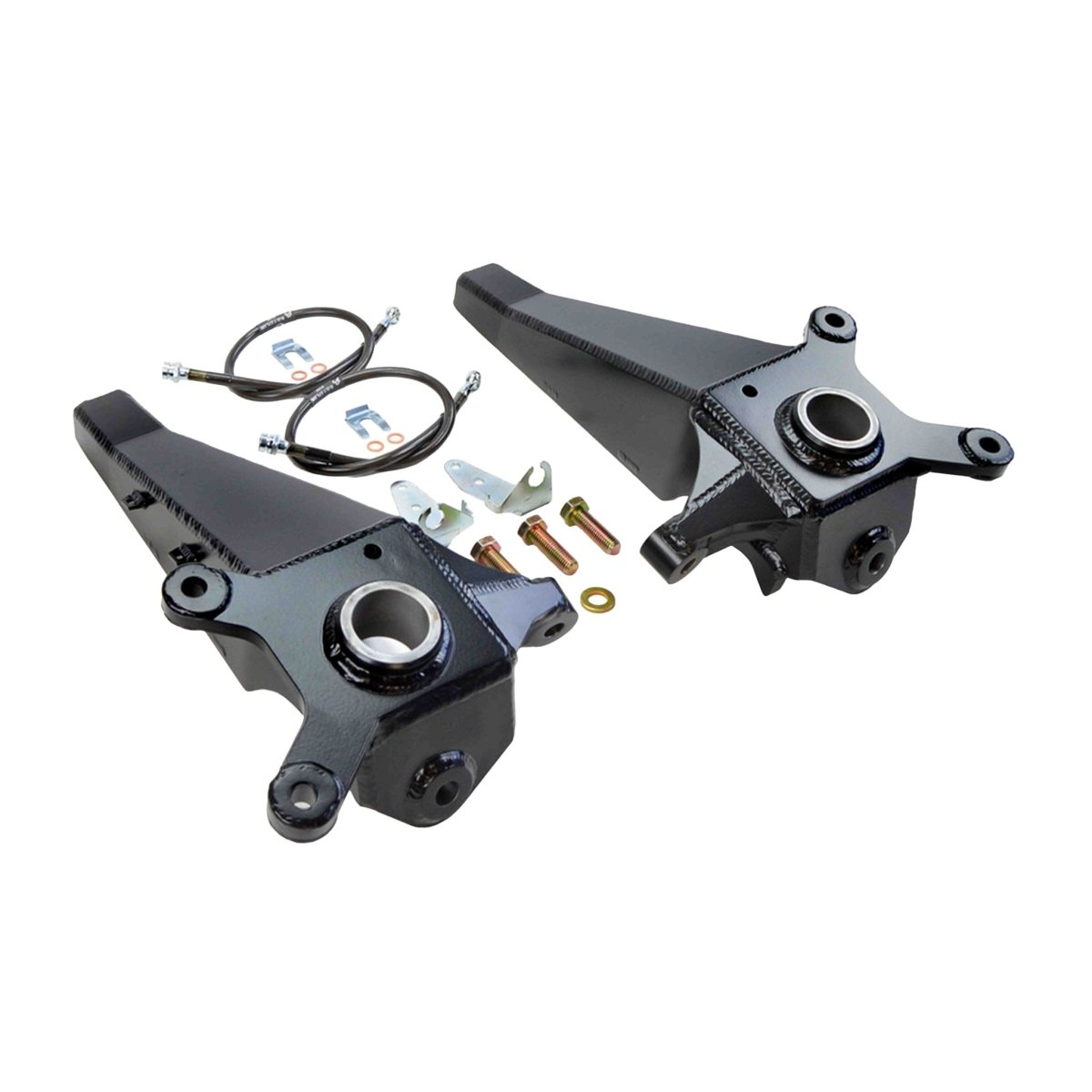

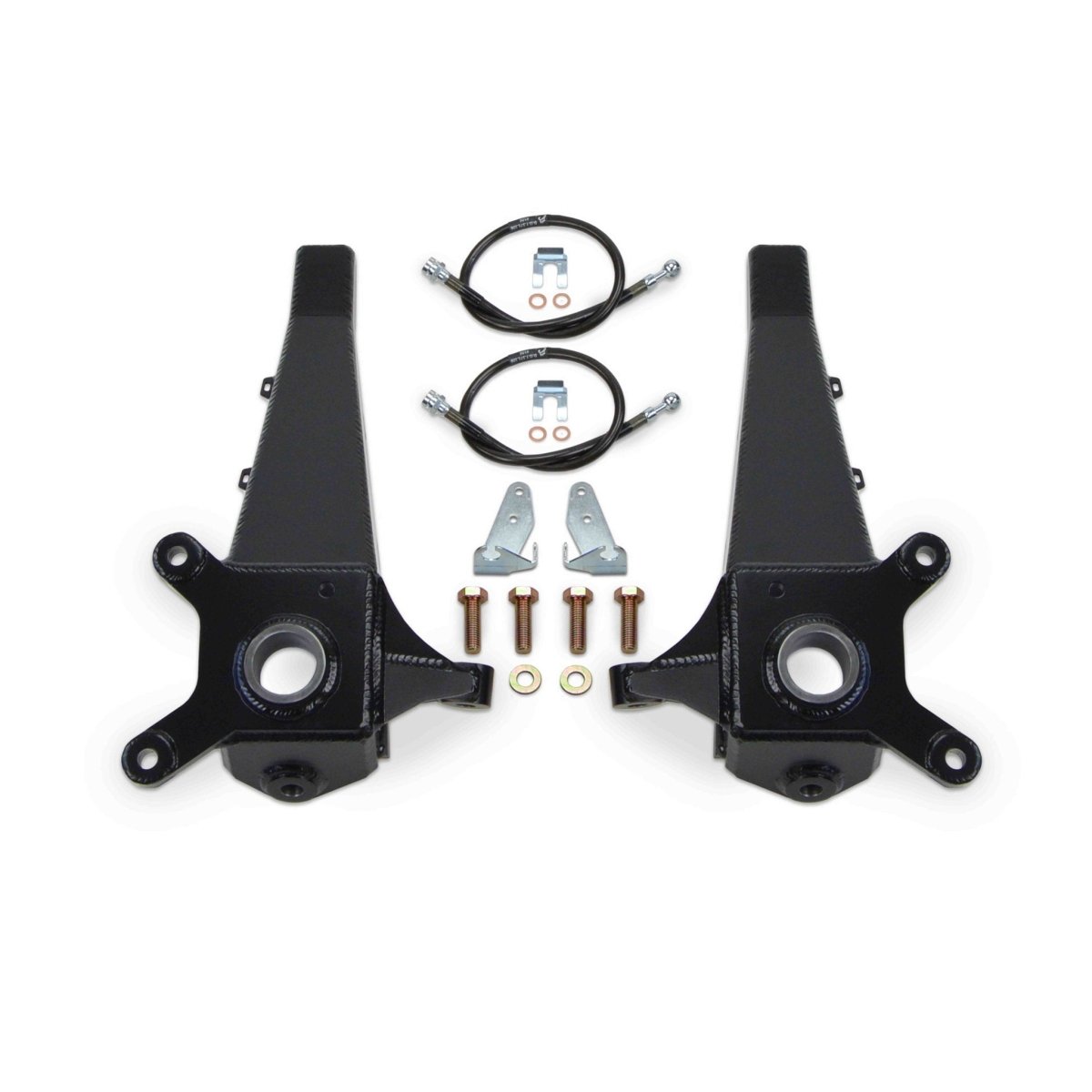

What's Included

• Fabricated lift spindles
• Extended DOT approved brake lines
• Brake line mounting brackets
• Grade 10.9 caliper mounting bolts
• Upper control arm washers
• Installation instructions

Features

• Direct bolt on application

• CAD designed
• Professionally MIG welded
• Proudly made in the USA

Compatibility

Ford F-150 2WD 2004-2008

Installation

Install using factory hub snouts pressed from the stock spindles and into the lift spindles, then bolt the new spindles into place. Extend and secure the brake lines with included components. Ensure all hardware is torqued to specification.
