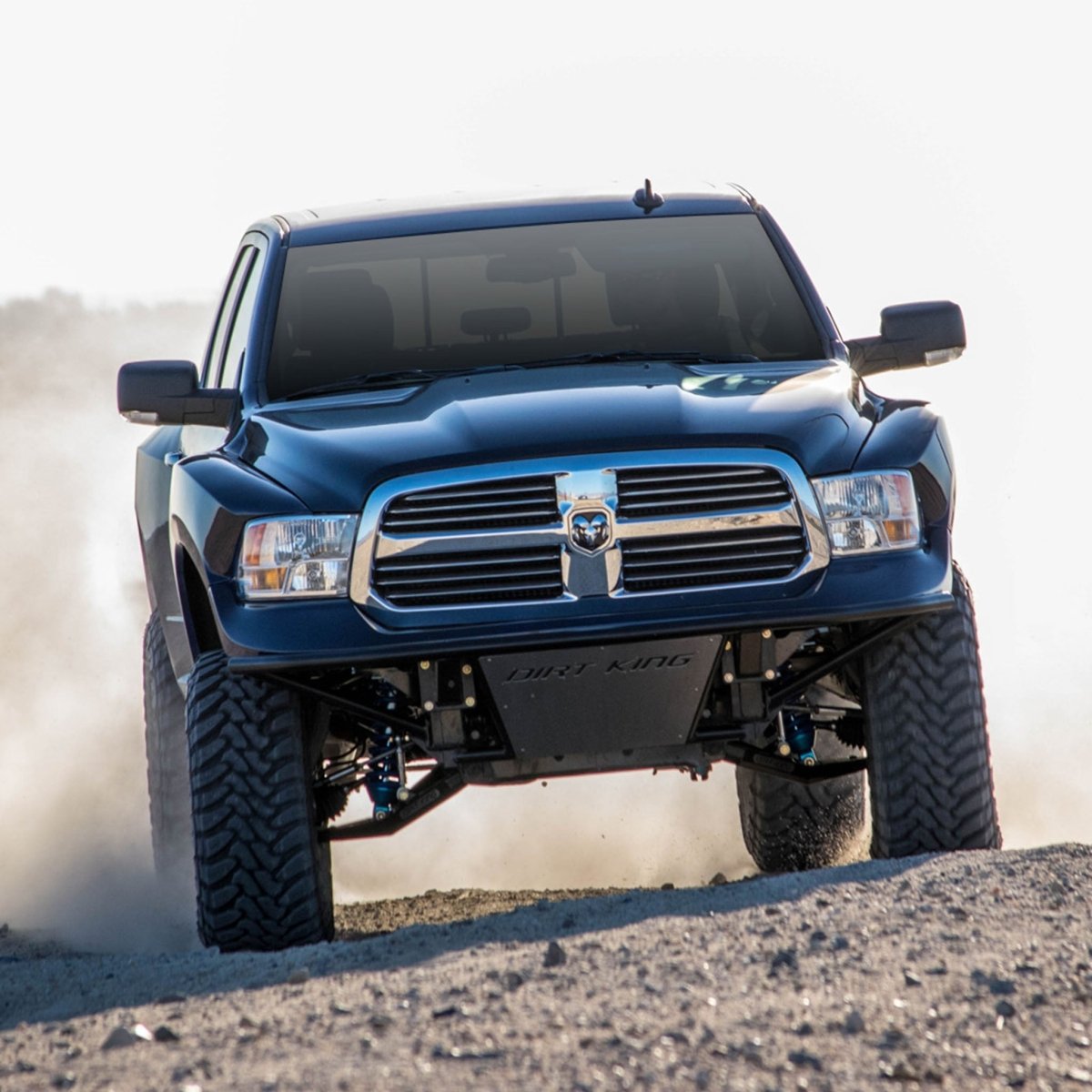

Dirt King Long Travel Kit | Ram 1500 (2009-2012)

The Dirt King Long Travel Kit is engineered to significantly increase front suspension travel while maintaining strength, stability, and precise control in demanding off-road conditions. Built with boxed plate steel construction and reinforced mounting points, this system delivers improved articulation and durability over factory suspension components.

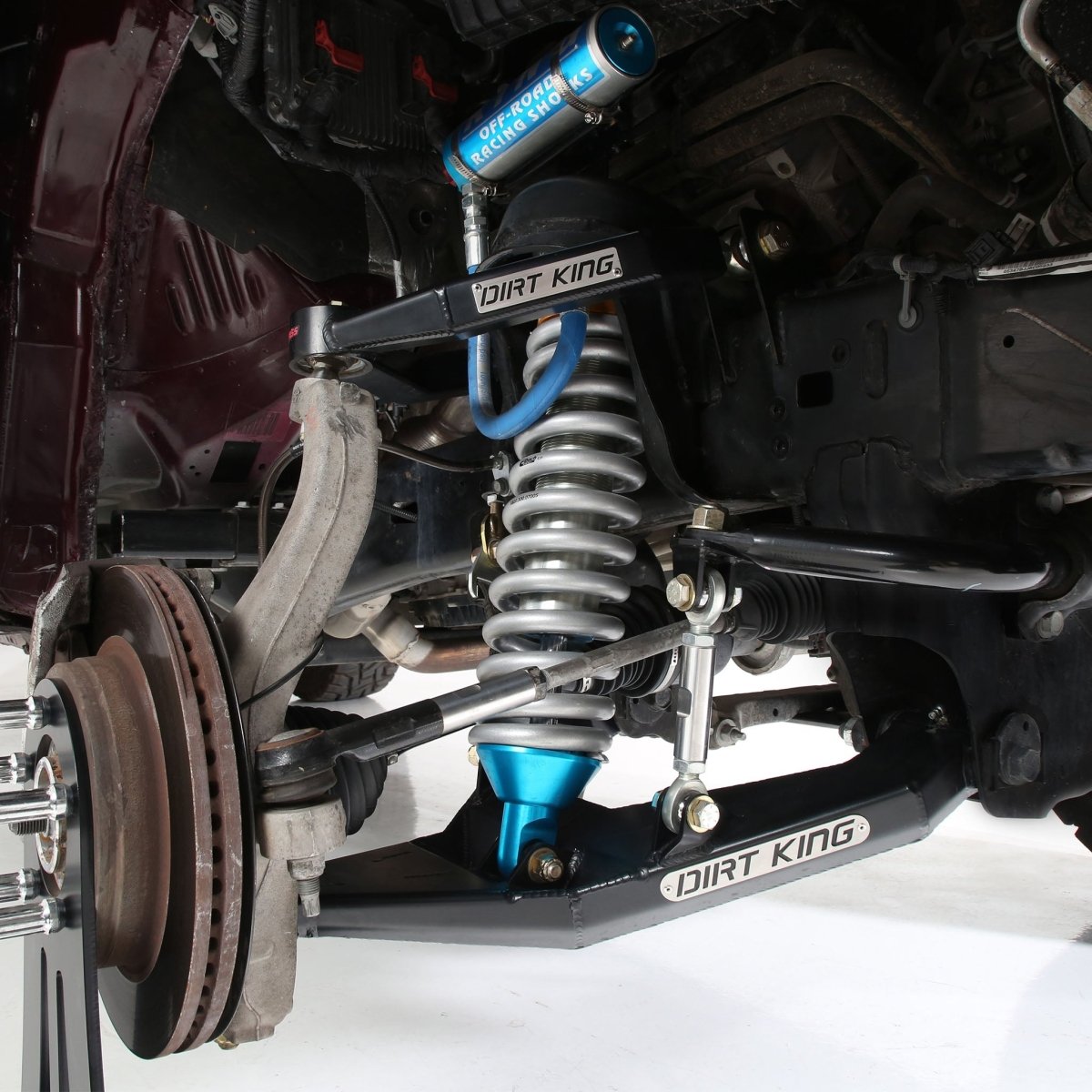

This long travel setup enhances suspension geometry, allowing smoother wheel movement through compression and droop. The widened front track increases stability at speed, while premium uniball pivots and stainless components ensure consistent performance under extreme loads and aggressive terrain use.

Designed as a complete bolt-on solution, the kit includes all critical components required for a front suspension upgrade. It supports adjustable ride height configurations and is optimized for high-performance coilover shocks, making it ideal for both recreational and high-speed off-road builds.

Specifications

• Wheel Travel: 13.5”
• Amount of Lift: 0-4”
• Track Width: 3” wider per side
• Maximum Tire Size: 37”
• Maximum Backspacing: 4.75”
• Minimum Rim Size: 17”
• Coil over Shock Size: 2.5” x 8”
• Compatible with Sway Bar: Yes (DK-541955)

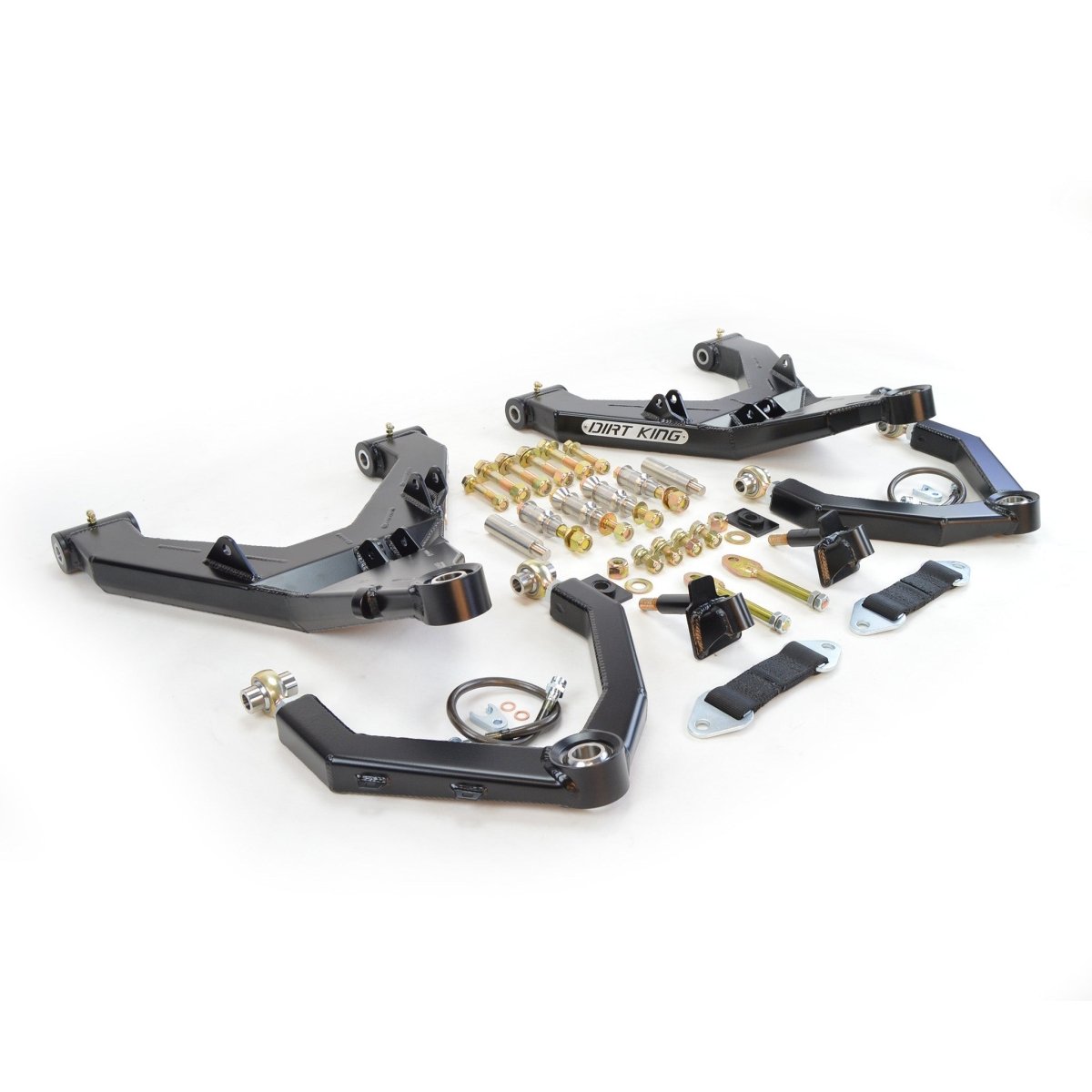

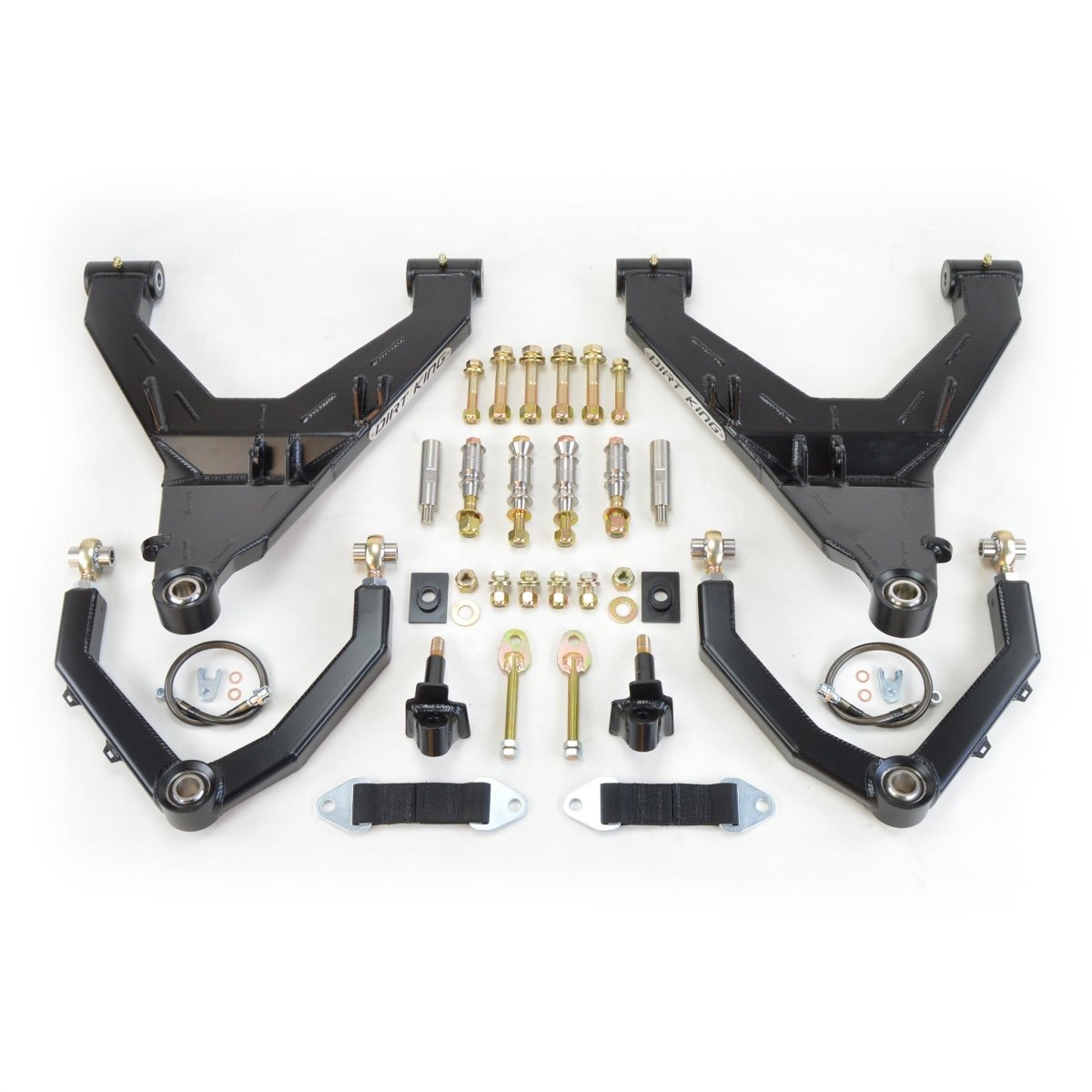

What's Included

• Boxed plate upper control arms
• Boxed plate lower control arms
• 8" quad wrapped limit straps
• Bolt on adjustable limit strap mounts

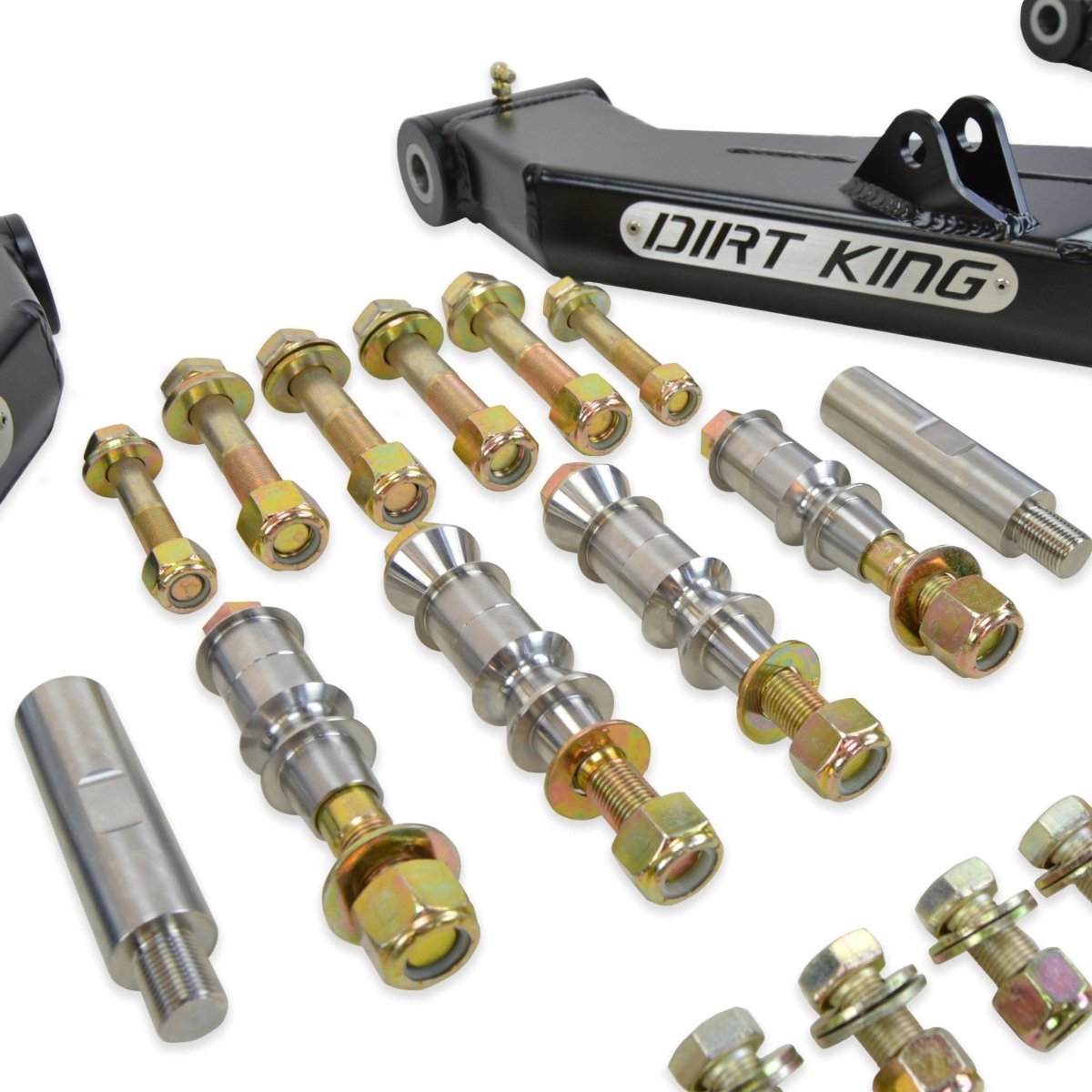

• 17-4 stainless steel misalignment spacers
• 17-4 stainless steel tie rod extensions
• DOT approved extended brake lines
• Grade 8 mounting hardware

Features

• Complete bolt on application, no modifications required

• Utilizes Probearing bearings
• 4130 chromoly uniball cups

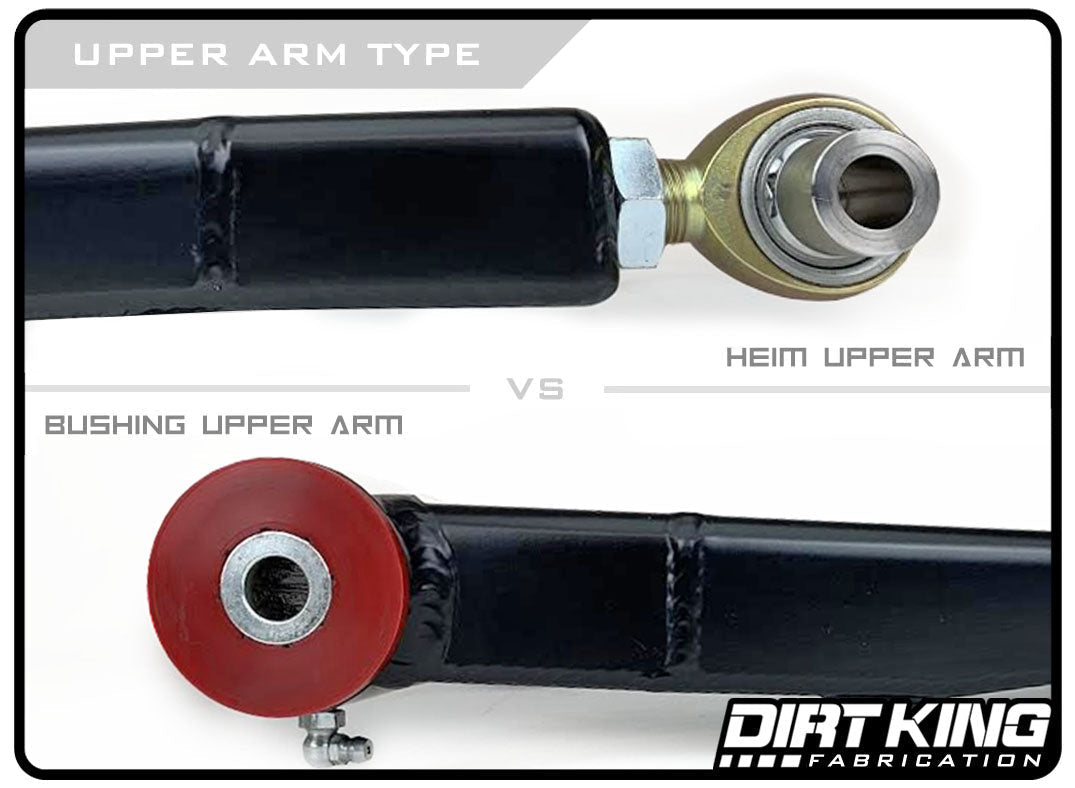

• Choice of  ¾” heims or delrin bushings for the UCA’s
• Delrin bushings for the LCA’s
• Zinc plated inner bushing sleeves
• Grease fittings for easy servicing
• 3/16" and 1/8” boxed plate construction
• Internally ribbed with extrusions for weight reduction
• Ability to adapt factory sway bar
• Limit strap tabbing

Compatibility

Ram 1500 2WD / 4WD 2009-2012

Front fiberglass required. Not compatible with factory sway bar.

This product is designed to pair with OEM and Dirt King parts. Compatibility with other brands must be approved by the respective manufacturer.

Installation

This long travel kit installs as a bolt-on front suspension system using factory mounting locations. Minor trimming may be required depending on setup. Professional alignment is recommended after installation.
