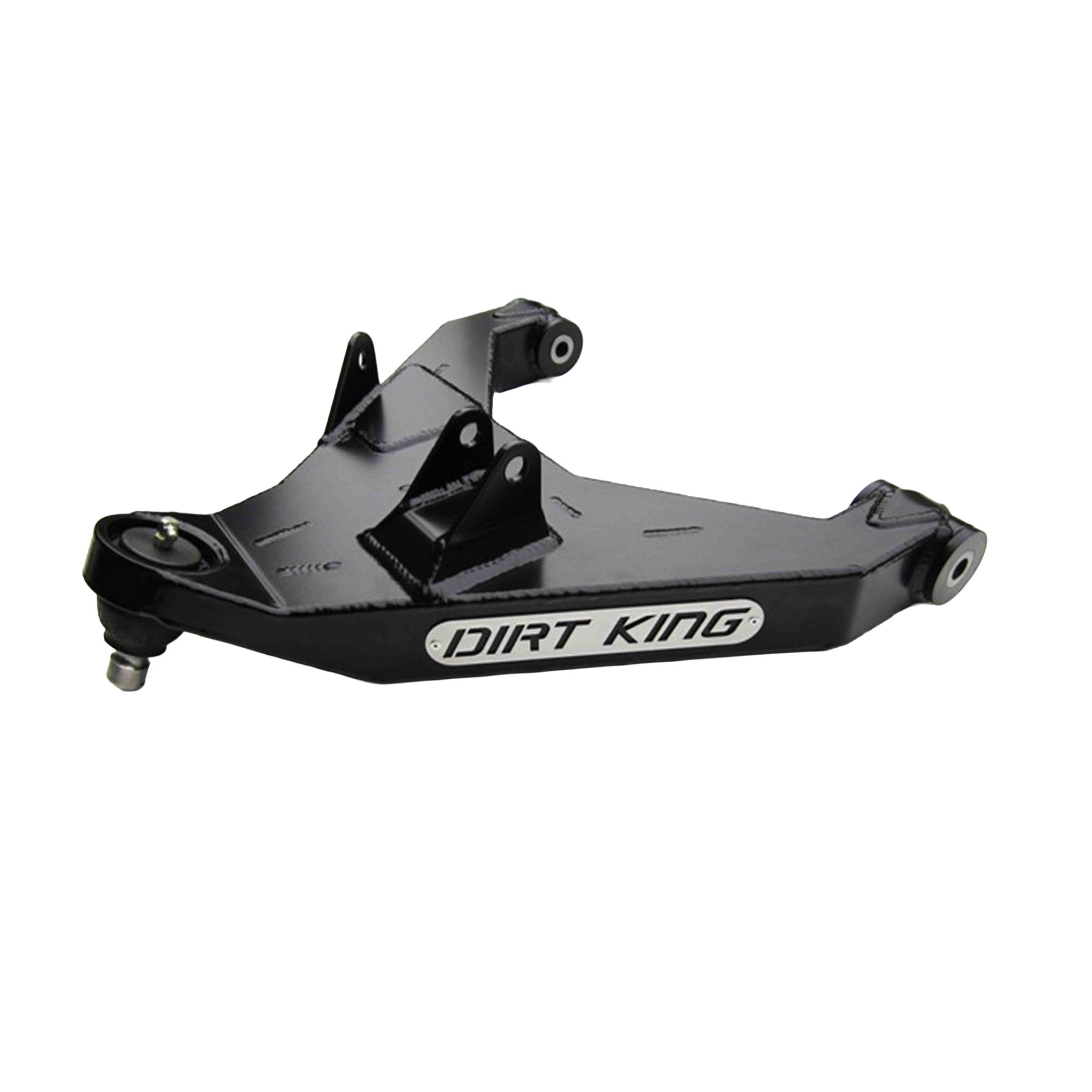

Dirt King Performance Lower Control Arms | Nissan Titan (2016-2023)

The Dirt King Performance Lower Control Arms are engineered to be a significant upgrade over factory suspension arms by providing increased strength, improved geometry, and enhanced articulation for trucks that see both on-road and off-road use. Compared to weak stock arms, these performance arms offer corrected ball joint angles that reduce stress and wear, and in 4WD models they relocate the shock to eliminate axle contact for smoother movement and clearance.

Constructed from CNC-formed, internally ribbed steel with heavy-duty Moog ball joints at the outer pivot and custom machined Delrin bushings at the inner pivot, these control arms resist flex and wear under load. The Delrin bushings provide a tighter pivot point than soft factory rubber or urethane bushings, eliminating forward/backward movement while still allowing full up/down travel, improving handling precision and responsiveness.

Preassembled and ready to install with detailed instructions, Dirt King’s Performance Lower Control Arms are a reliable solution to strengthen your suspension, improve handling, and prepare your truck for more aggressive driving, larger tires, and enhanced terrain performance.

Specifications

• Track Width: Stock
• Maximum Tire Size: 33”
• Maximum Backspacing: 5.25”
• Minimum Rim Size: 17”
• Compatible with factory sway bar: No
• Bump Stop Size: 2.0 x 2.0
• Coil Over Shock Size: OEM replacement coil overs

What's Included

• Boxed plate lower control arms
• Delrin bushings
• Grease fittings
• Moog ball joints
• Brushed stainless steel logo plates
• Zinc plated inner bushing sleeves
• Durable black powder coat
• Dirt King sticker pack
• Installation instructions

Features

• CAD designed

• Formed steel bushing gussets
• Internally ribbed with extrusions for weight reduction
• Preassembled for fast installation
• Grease fitting ports for easy servicing
• Professionally MIG welded
• Proudly made in the USA

Compatibility

Nissan Titan 2WD / 4WD 2016-2023

This suspension will not work with the 2016 or newer Titan XD models.

These arms do not work with the factory sway bar and must be used with coil overs that have a spherical lower rod end. The use of hydraulic bump stops require cutting and welding to the frame.

This product is designed to pair with OEM and Dirt King parts. Compatibility with other brands must be approved by the respective manufacturer.

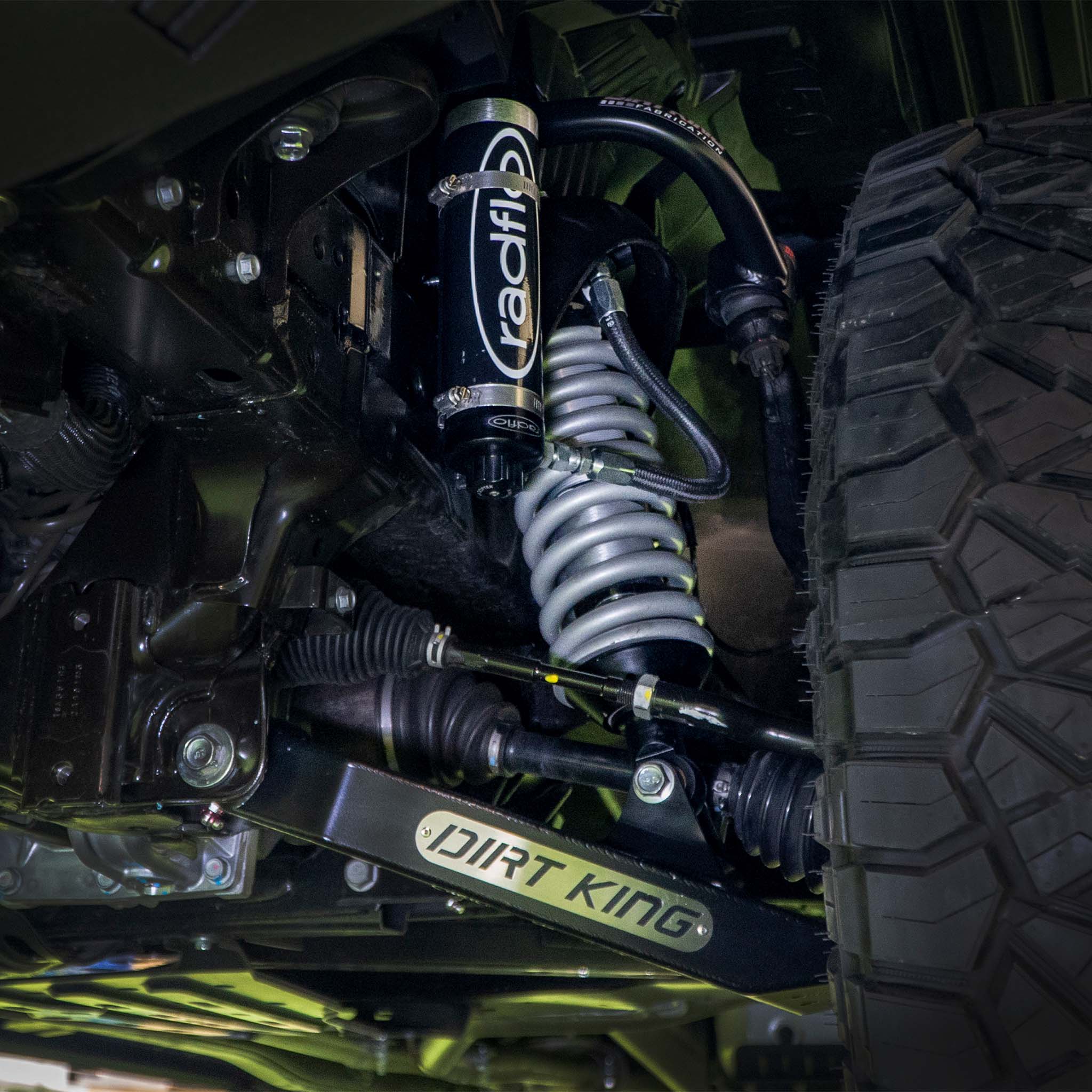

Installation

Remove the factory lower control arms and install the performance arms in the same mounting locations using the included hardware. Grease the Moog ball joints and torque all fasteners to the manufacturer’s specifications. Check alignment after installation.
