Flatline Van Co Rear Door Platform | Ford Transit (2015-2024)

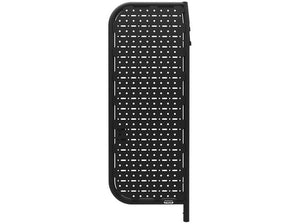

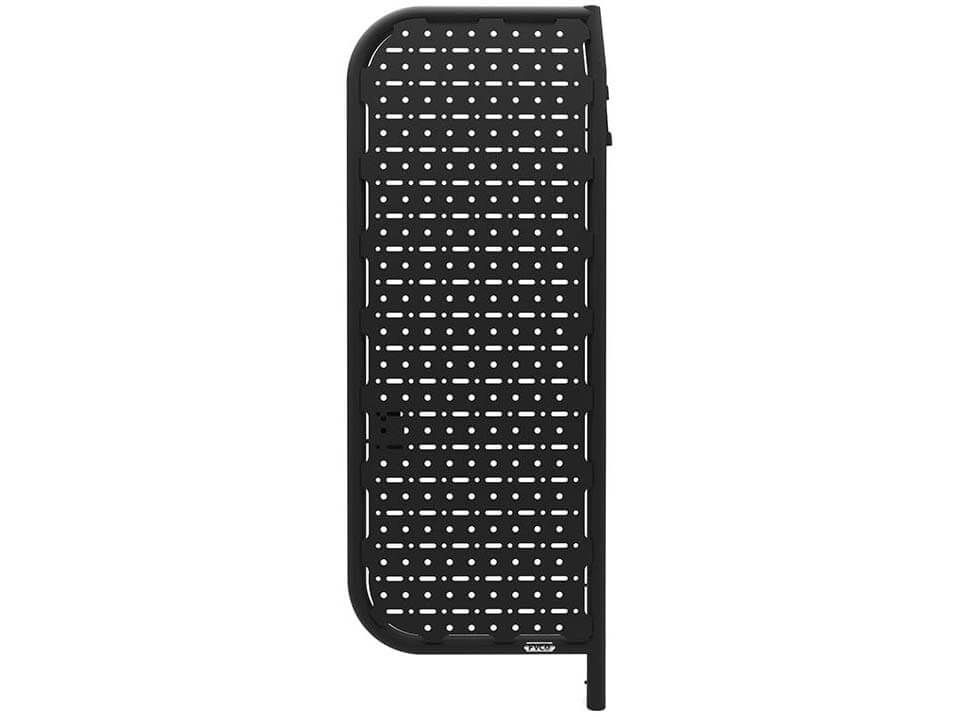

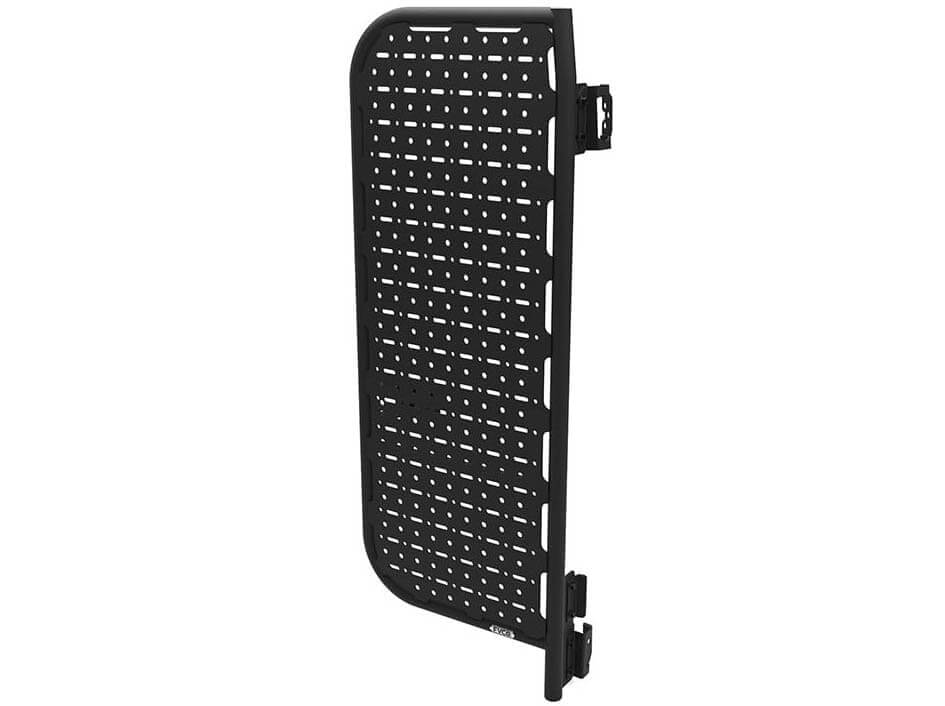

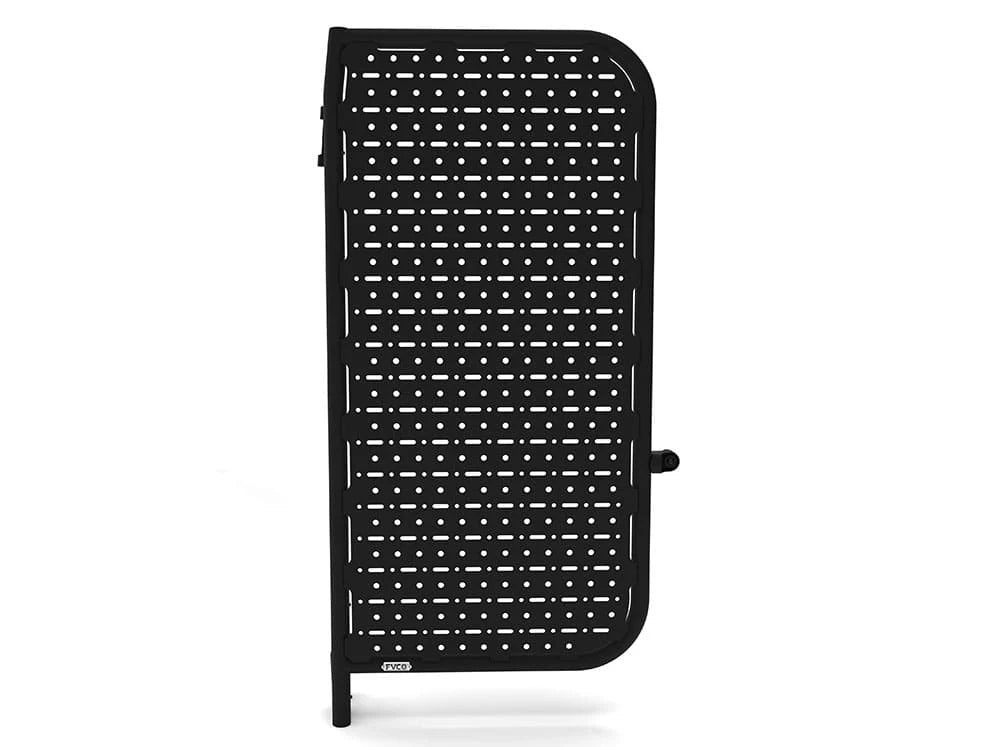

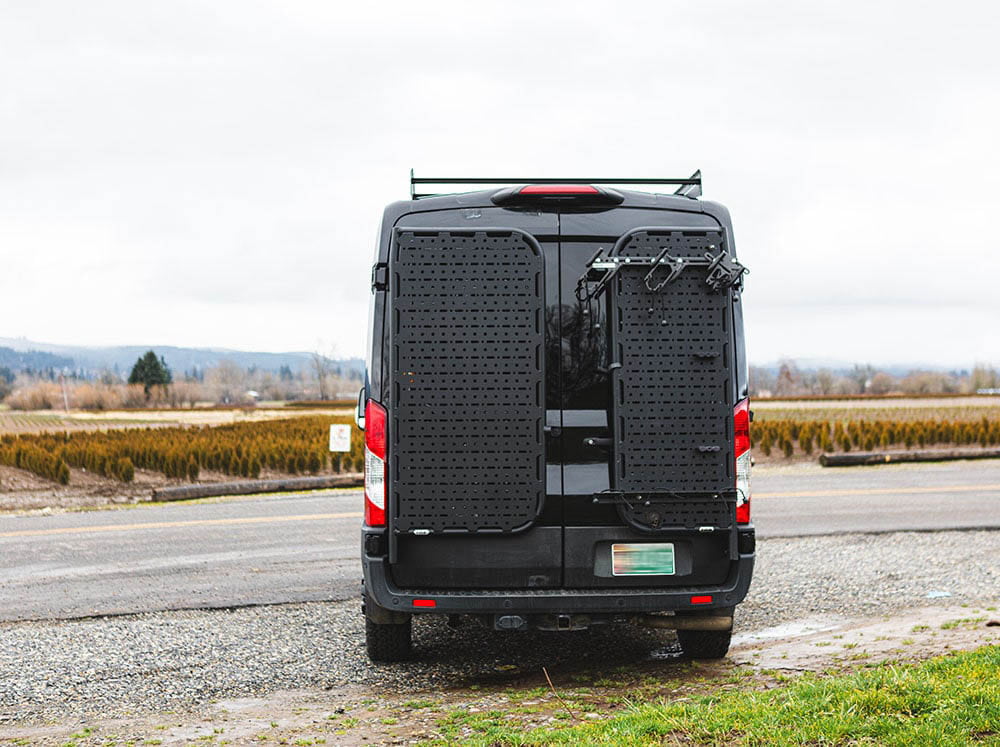

Elevate your gear organization with this modular Transit Rear Door Platform, designed for 2015+ Ford Transit (mid‑/high‑roof and Trail models). Built from a durable 1.75″ aluminum round frame paired with a heavy-duty 3/16″ mounting plate, it secures to the rear door hinges and adds versatile storage at the back of your van. Installation requires only a single drilled hole through the door and is friendly to DIYers within about 90 minutes—no unnecessary modifications needed

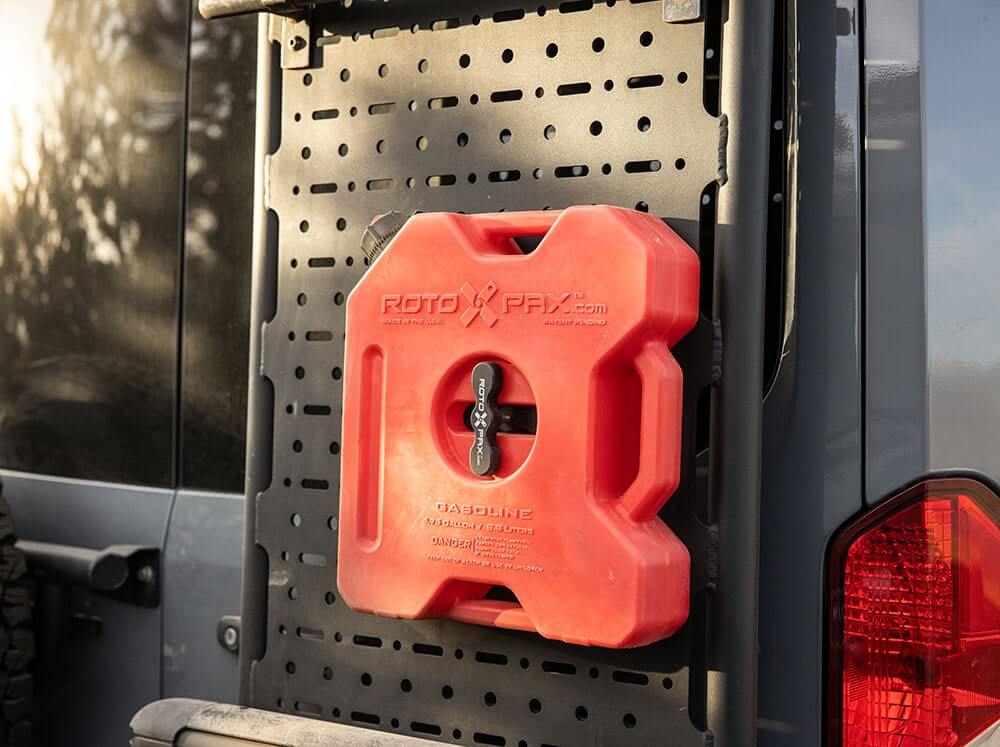

Engineered with over 200 patterned ½″ and ⅜″ holes, the platform accommodates a wide array of gear: bikes, MaxTrax, Rotopax, skis, or custom mounting systems. The mounting surface sits flush with the frame, maximizing usable space without protruding hazards.

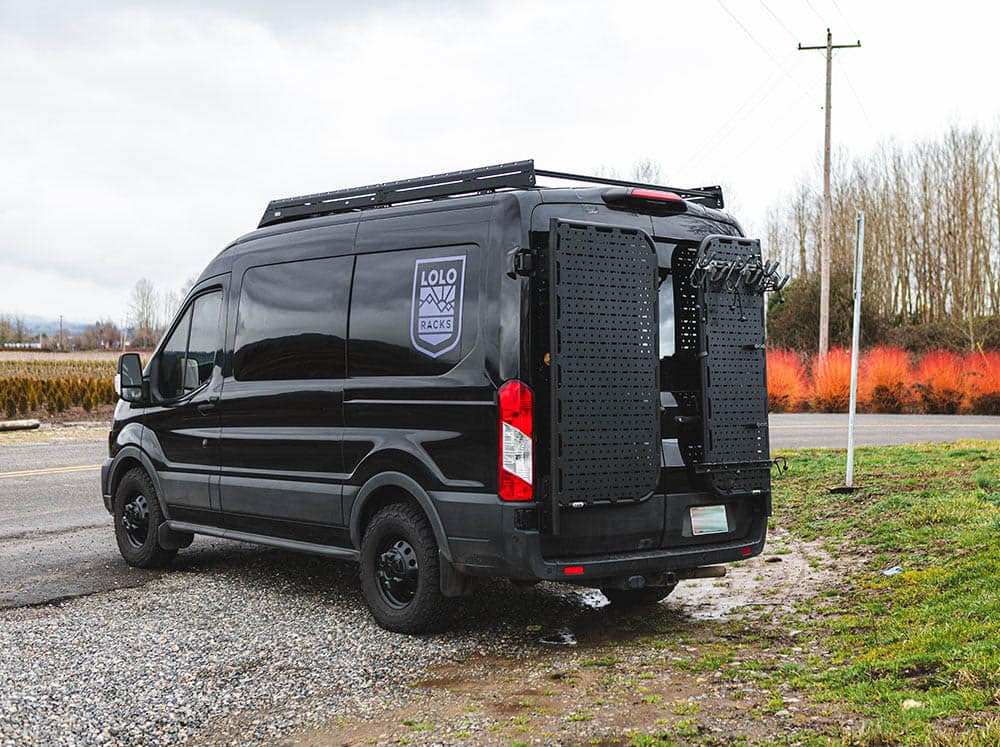

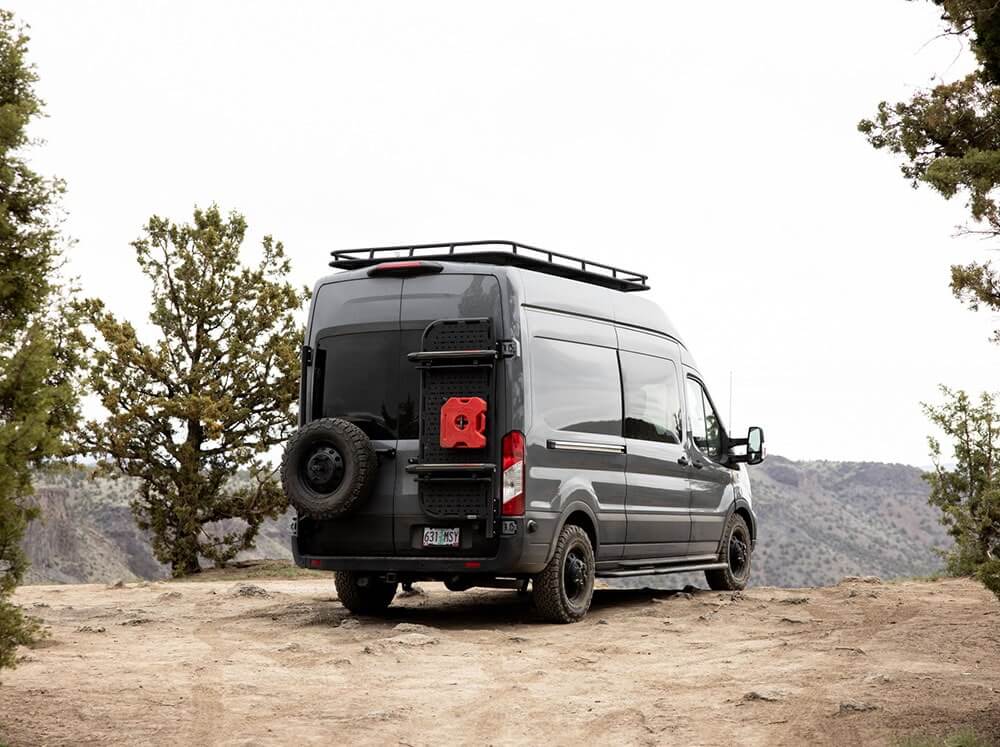

Whether you’re staging gear for adventure or adding external cargo capacity, this platform blends strength, adaptability, and the clean integration expected from Flatline parts.

Specifications

• Material: 1.75” Aluminum Round Frame | 3/16” Aluminum Mounting Plate
• Finish: Black Powder Coat
• Driver Side mountable surface area: 54” tall by 24” wide
• Passenger Side Mountable Surface Area: 54" tall by 18" wide
• Driver Side Overall Dimensions: 59.38" tall by 30.01" wide
• Passenger Side Overall Dimensions: 59.38" tall by 23.75" wide
• Mounting Holes: Patterned 1/2” and 3/8”
• Max Weight Capacity: 200 lbs
• Comaptible Accessories/Gear: MaxTrax, Rotopax, Snowboards/Skis, Bikes
• Fitment:
  • 2015+ Ford Transit High Roof and Mid Roof Vans (all wheelbases)
  • 2023+ Ford Transit Trail

Installation

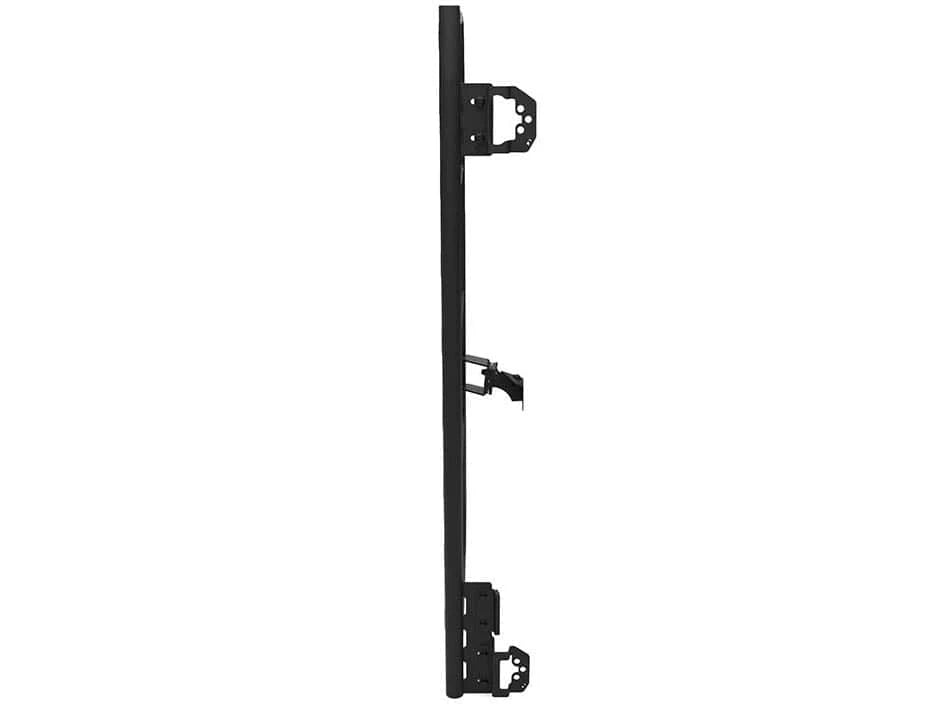

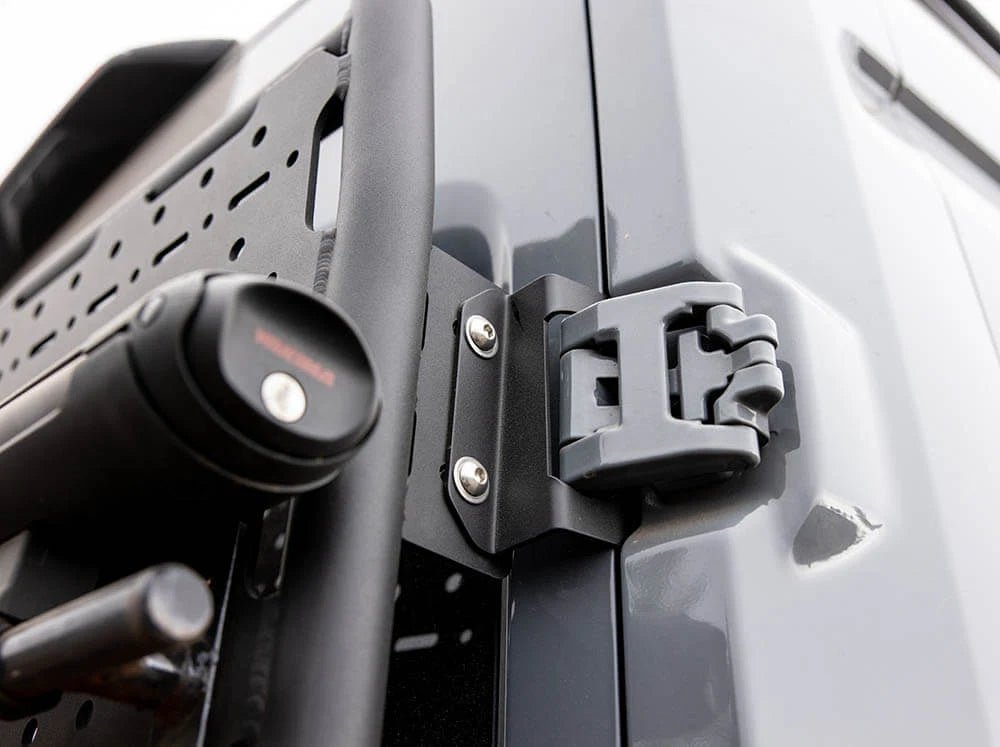

Mounts to rear door hinges using included brackets. Drill one exterior and interior hole through the door; install platform with supplied fasteners and optional hinge-backed support. Basic tools needed—towel or helper recommended. Install time: under 90 minutes.
