Flatline Van Co Fiamma F45s Awnings | Truck Brigade

Flatline Van Co Fiamma F45s Awnings

$1,495.00 - $1,795.00

Compact extruded aluminum case with aerodynamic profile and all-metal end caps
UV-resistant, waterproof canopy material for lasting protection
Reinforced arms provide stability in wind or rain
Telescoping legs lock to ground or wall for secure setup
Available in multiple lengths (8'8", 10'1", 11'6", 13'1")

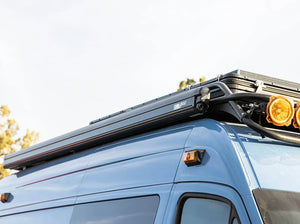

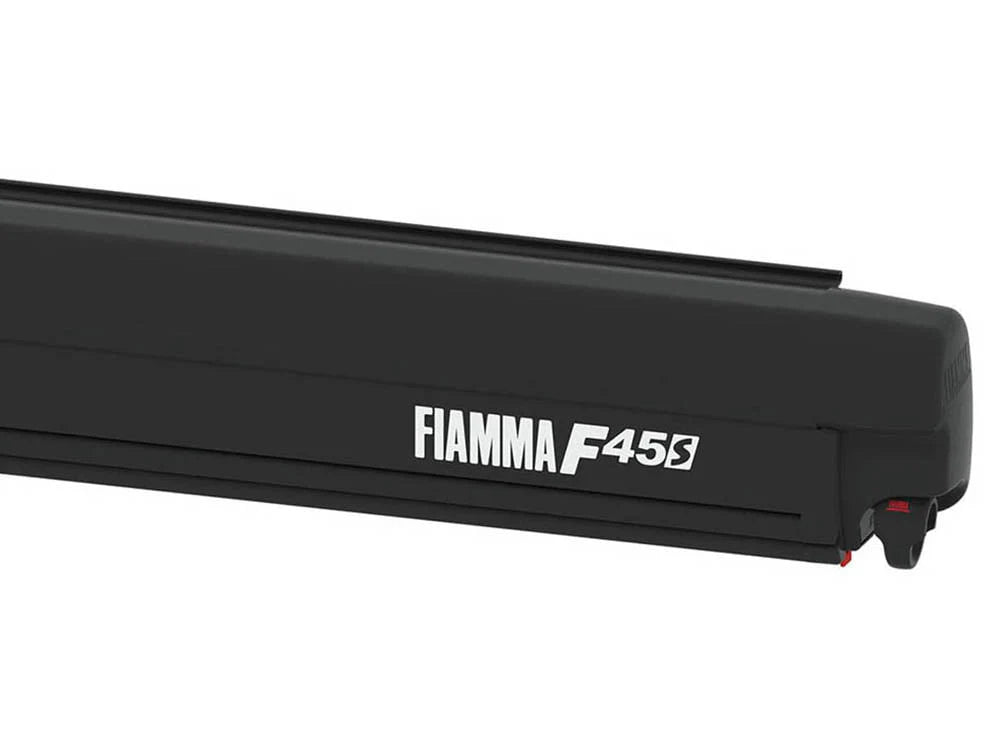

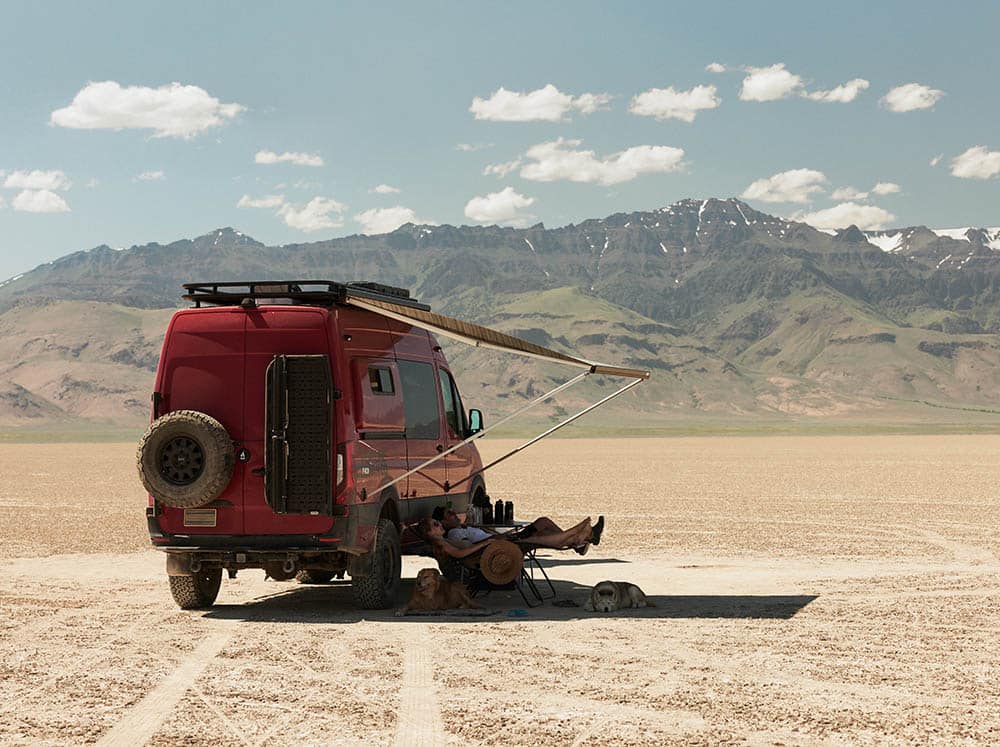

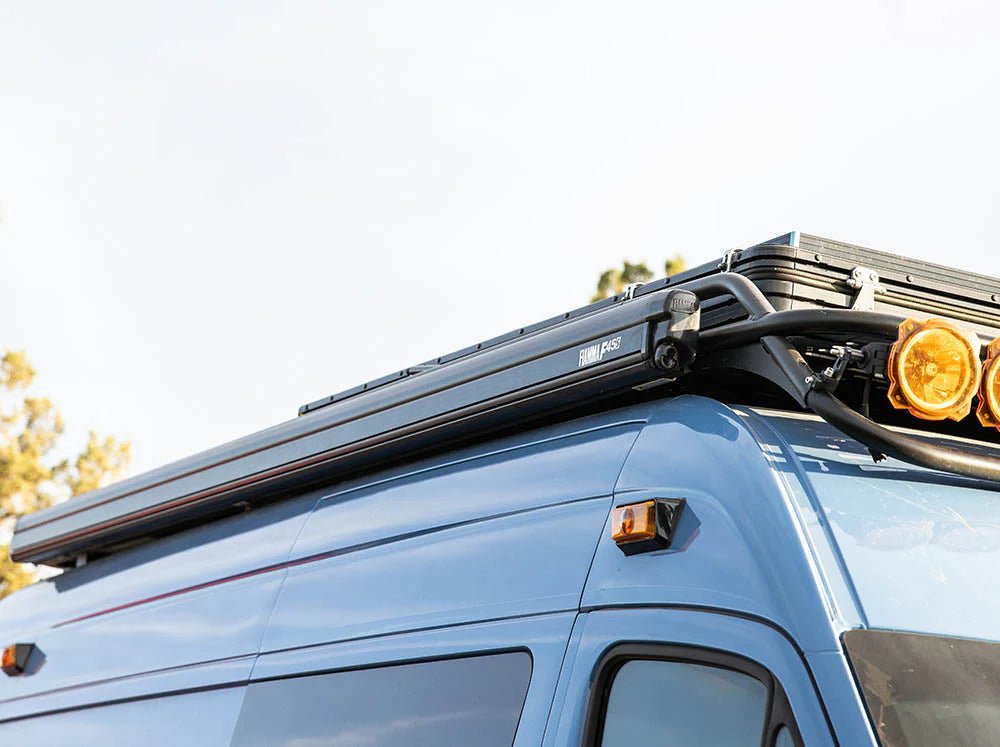

The Fiamma F45s Awning delivers shade, shelter, and sleek styling for your Sprinter van. Its compact case hugs the van’s roofline, reducing drag and visual bulk. The Fiamma F45 awning projects out to 8’2” when fully opened and the canopy material is washable and designed to block UV rays.

The Fiamma F45s awning is one of the most versatile options available for a wide range of van makes and models. Designed for flat wall mounting, it’s a perfect fit for the Transit and Promaster Low Pro's, as well as our Sprinter Safari and Standard Racks. Installation is straightforward, and the flush-mount design helps prevent gaps that could let in water or other elements.

Built to withstand regular use, it offers shade, weather protection, and style—making it a standout solution for Sprinter-based adventure and outdoor living setups.

Note: Fiamma awnings are currently being drop-shipped separately via freight directly to you. Please allow *1-2 weeks* for processing and handling times.

Specifications

Material: Aluminum
Finish: Deep Black Case with Royal Grey Fabric
Weight:
- Fiamma F45S 260: 43 lbs.
- Fiamma F45S 300: 51 lbs.
- Fiamma F45S 350: 56 lbs.
- Fiamma F45S 400: 59.5 lbs.
Awning Case Length:
- Fiamma F45S 260: 8’8"
- Fiamma F45S 300: 10'1"
- Fiamma F45S 350: 11'6"
- Fiamma F45S 400: 13’1"
Canopy Length:
- Fiamma F45S 260: 8'1"
- Fiamma F45S 300: 9'6"
- Fiamma F45S 350: 10'9"
- Fiamma F45S 400: 12’7"
Extension Length:
- Fiamma F45S 260: 8'1"
- Fiamma F45S 300: 8'2"
- Fiamma F45S 350: 8'2"
- Fiamma F45S 400: 8'2"
Roof Rack Compatibility:
- Fiamma F45S 260:
  - Transit 130 Mid Roof Low Pro Roof Rack
- Fiamma F45S 300:
  - Transit 148 High Roof Low Pro Roof Rack
  - Transit 148 Mid Roof Low Pro Roof Rack
  - Transit 148 Mid Roof Safari Rack
  - Transit 148 High Roof Safari Rack
  - Sprinter 144 Safari Rack
  - Sprinter 144 Standard Roof Rack
  - Promaster 136 Low Pro Roof Rack
- Fiamma F45S 350:
  - Transit 148 Ext. Low Pro Roof Rack
  - Transit 148 Ext. Safari Rack
  - Sprinter 170 Safari Rack but we recommend the F45S 400 for better coverage.
  - Promaster 159 Low Pro Roof Rack
- Fiamma F45S 400:
  - Sprinter 170 Safari Rack
  - Sprinter 170 Standard Roof Rack
  - Promaster 159 EXT Low Pro Roof Rack

Installation

Mount F45S brackets to your van’s rack, then secure the case using included hardware. Unfold telescoping legs and lock into ground or wall mounts. Hook winch loop, crank out canopy, and adjust tension. The process takes about 60 minutes with basic tools—no cutting or drilling required.
