RCI Off-Road Fuel Tank Skid Plate | Toyota Tacoma (2024-2026)

The RCI Offroad Fuel Tank Skid Plate for the 2024+ Toyota Tacoma is designed to protect one of the most vulnerable components of the vehicle’s undercarriage. Built for off-road durability, this skid plate helps prevent punctures and damage to the fuel tank caused by rocks, debris, and harsh terrain conditions.

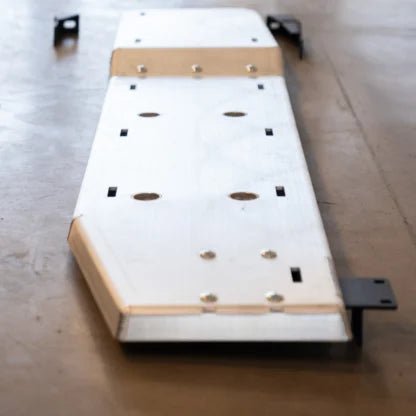

Constructed using CNC laser-cut and precision-formed materials, the skid plate is available in 3/16-inch steel for maximum puncture resistance or 1/4-inch 5052 aluminum for a lightweight alternative without sacrificing strength. Its smooth, flat design allows the vehicle to slide over obstacles more easily, improving off-road performance.

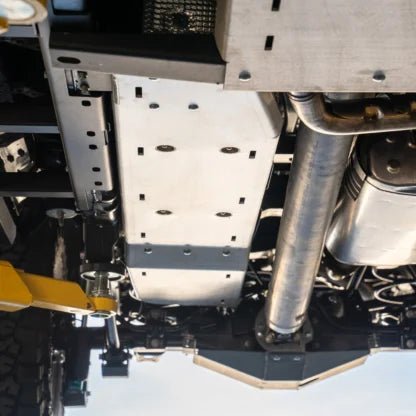

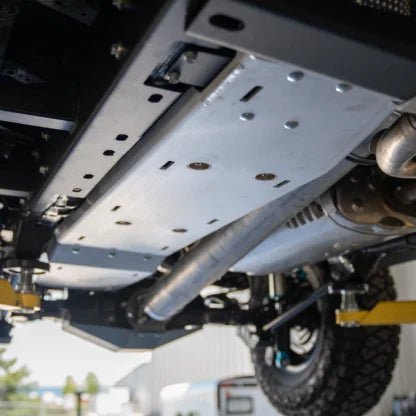

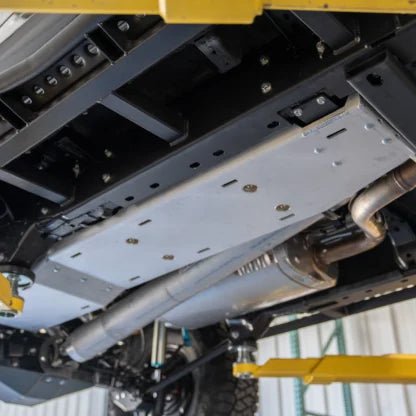

Designed for ease of installation, the skid plate mounts directly to factory locations using existing fuel tank support straps. The system includes all required hardware and installs quickly without drilling. A durable black powder coat finish on steel options provides long-term corrosion resistance in demanding environments.

Specifications

• Material Options: 3/16" Steel or 1/4" 5052 Aluminum
• Finish: Black Powder Coat (Steel) / Raw or Powder-Coated Aluminum
• Weight: 62 lbs (Steel) / ~28 lbs (Aluminum)
• Protection Area: Fuel Tank
• Design: Smooth Flat Skid Plate with Bolt Protection Rings
• Mounting Type: Factory Fuel Tank Straps
• Installation Type: Bolt-On (No Drilling Required)
• Hardware Included: Yes
• Dimensions: 52 × 19 × 5 in
• Vehicle Compatibility: Toyota Tacoma (2024+)

Fit all 24+ Tacoma 18g fuel tanks

Installation

Installation is a direct bolt-on process using factory fuel tank support straps and included hardware. No drilling is required, and the system can be installed quickly with basic tools.
