C4 Fabrication Full Skid Plate | Toyota 4Runner (2025-2026)

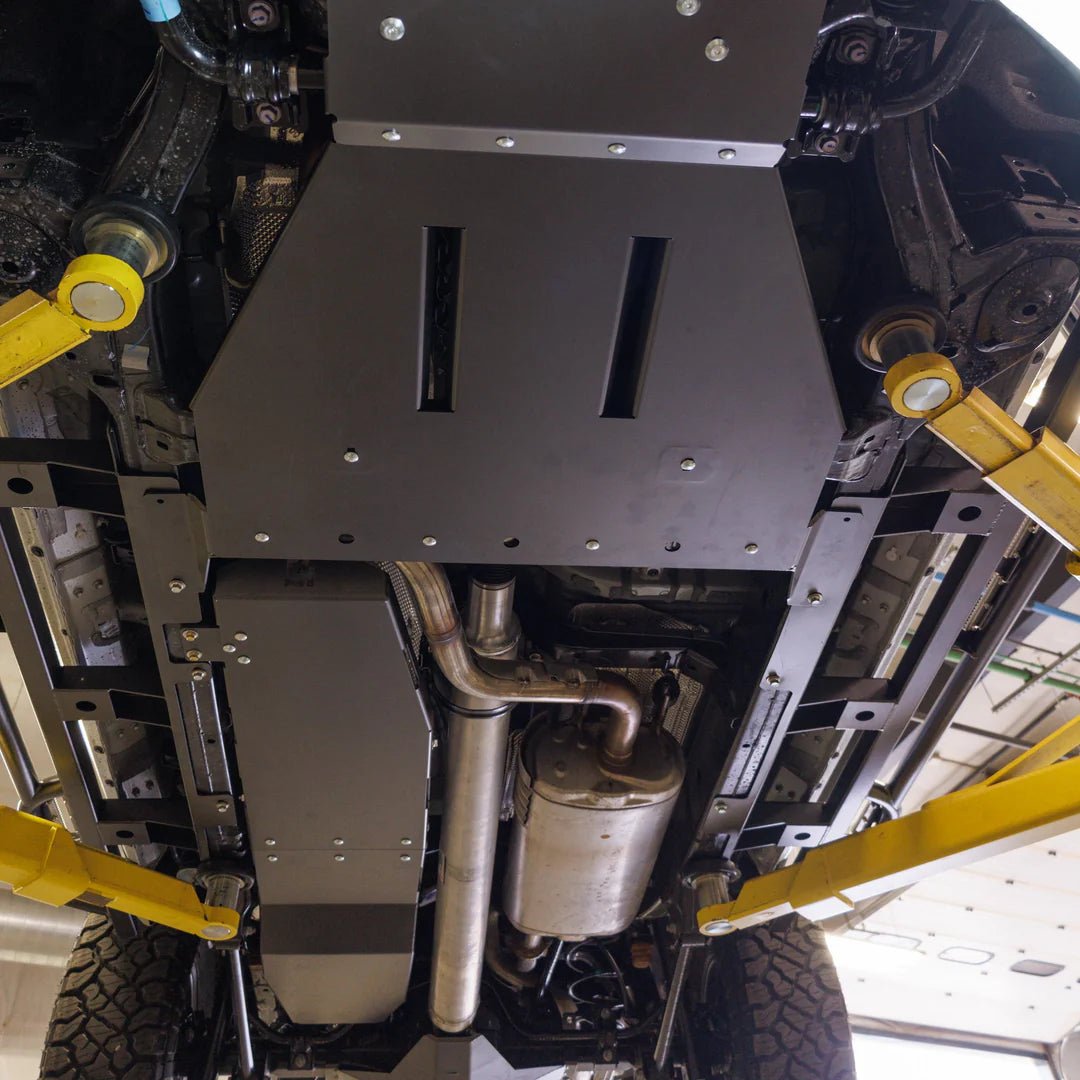

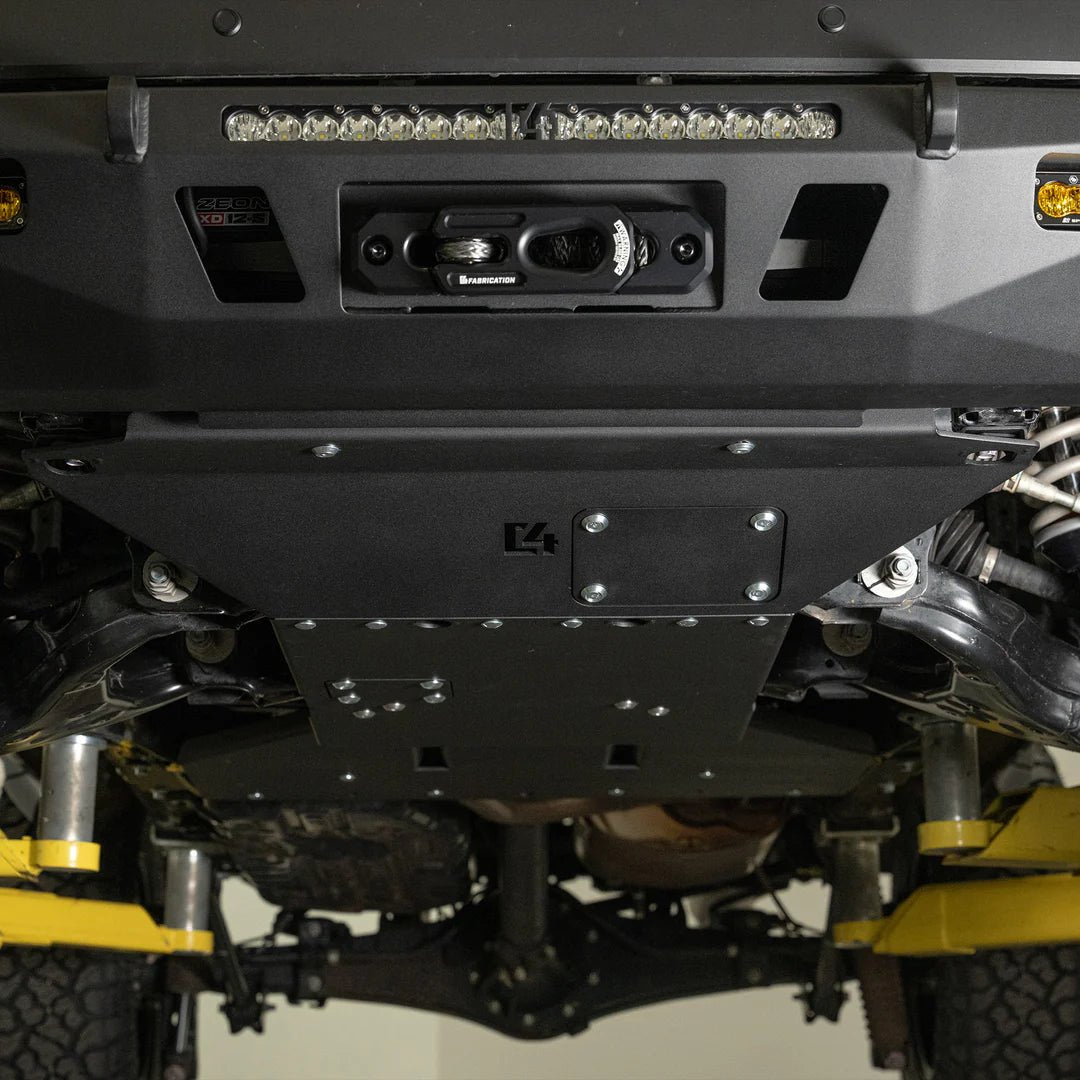

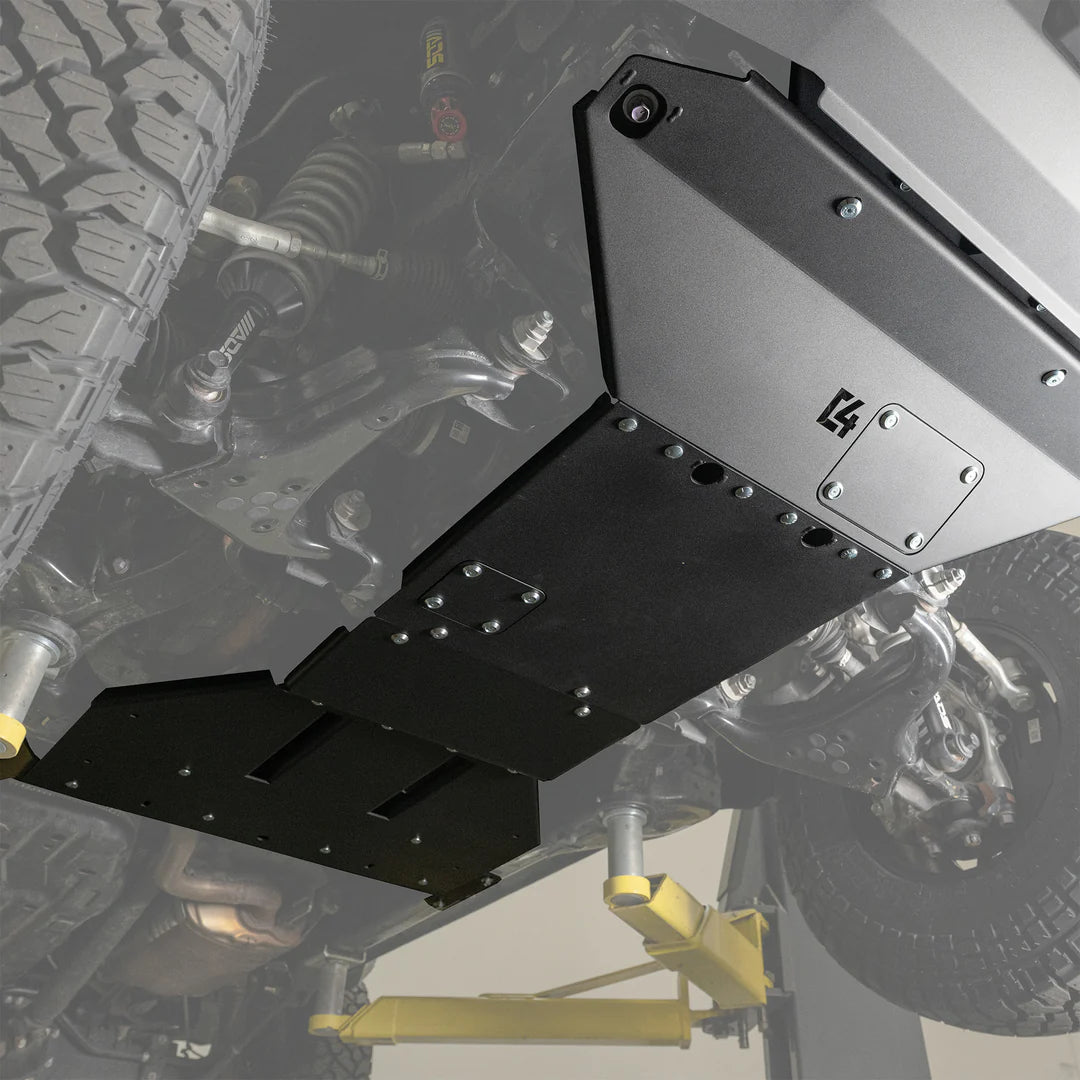

The 6th Gen 4Runner Full Skid Plates from C4 Fabrication are designed to provide comprehensive underbody protection for serious off-road driving. This heavy-duty armor system shields critical drivetrain components from trail hazards such as rocks, debris, and uneven terrain. With coverage extending from the radiator area to the transfer case, the system helps protect essential components during demanding off-road conditions.

Constructed from CNC-cut 3/16-inch P&O steel, the skid plates deliver exceptional durability and impact resistance. The system includes both front and rear skid plates that work together to create continuous underbody protection. Despite its rugged construction, the full skid system weighs approximately 122 lbs, offering strong protection without excessive weight.

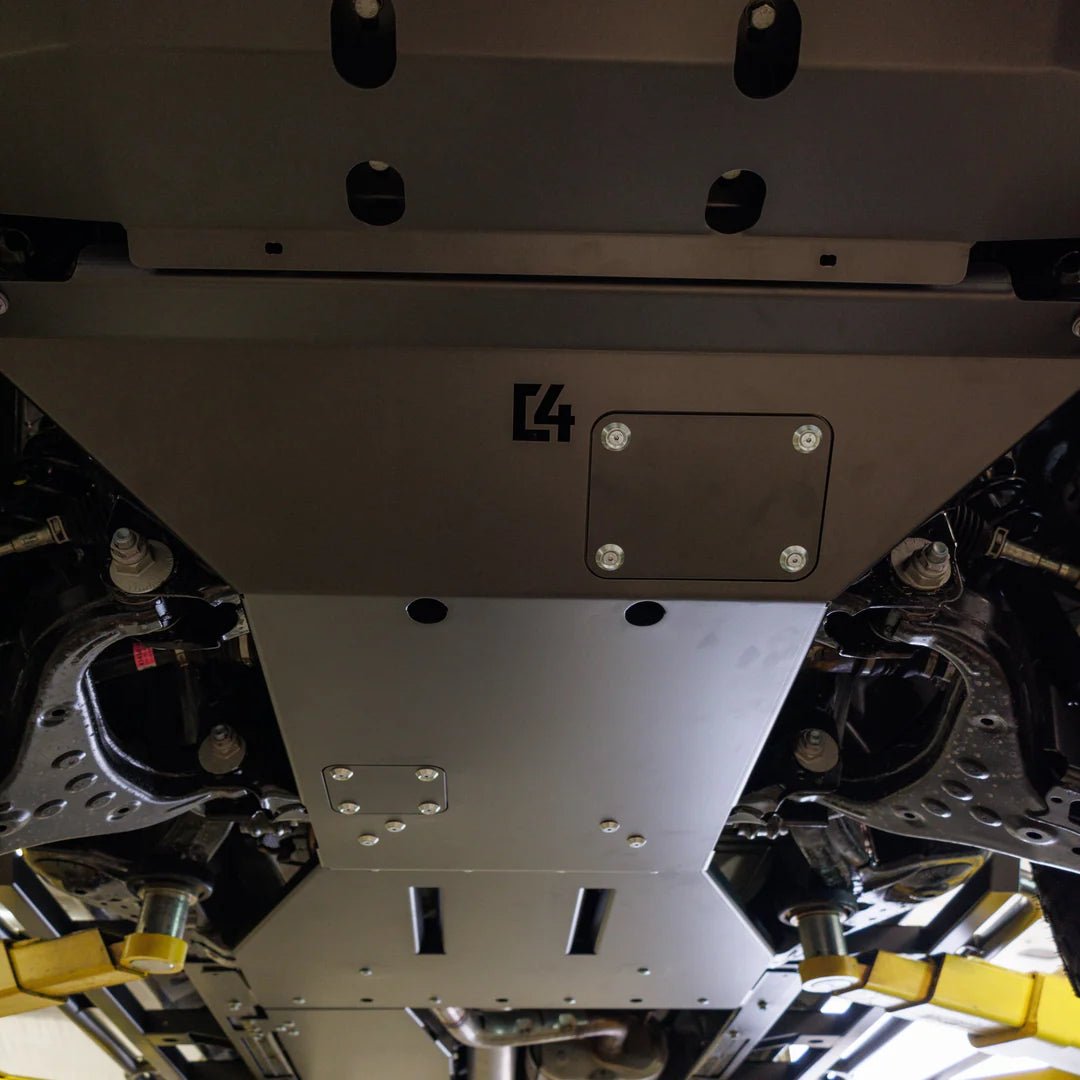

Designed with practicality in mind, the skid plates feature integrated oil drain and oil filter access covers, allowing routine maintenance without removing the plates. The system uses a 100% bolt-on installation design and includes all required hardware. It also works with most aftermarket bumpers, making it a versatile upgrade for off-road builds or overland setups.

Specifications

• Material: 3/16" CNC Cut P&O Steel
• Coverage: Radiator to Transfer Case Protection
• System Components: Front and Rear Skid Plates
• Maintenance Access: Oil Drain Cover and Oil Filter Cover
• Weight: Approximately 122 lbs
• Installation Type: 100% Bolt-On
• Hardware: Mounting Hardware Included
• Finish Options: Raw Steel or Powder Coat

Installation

Installation uses a 100% bolt-on design that mounts directly to factory mounting points. The system includes all required hardware and installs as a front and rear skid plate set. Integrated oil drain and oil filter access panels allow routine maintenance without removing the skid plates.
