Dirt King Long Travel Axle Assemblies | Toyota 4Runner (2003-2024)

$1,352.00 - $1,602.00

Specifically designed to retain 4WD driveline function with long travel suspension systems.
Extended axle shafts provide increased articulation range for full suspension travel.
Material options: choose between 4340 chromoly or stronger 300M steel for greater strength.
Extended shafts are heat treated for enhanced toughness and durability.
ssembled with inspected OEM axle cores for balance and reliability.

Discount available for Military, First Responders, Medical Workers and Teachers

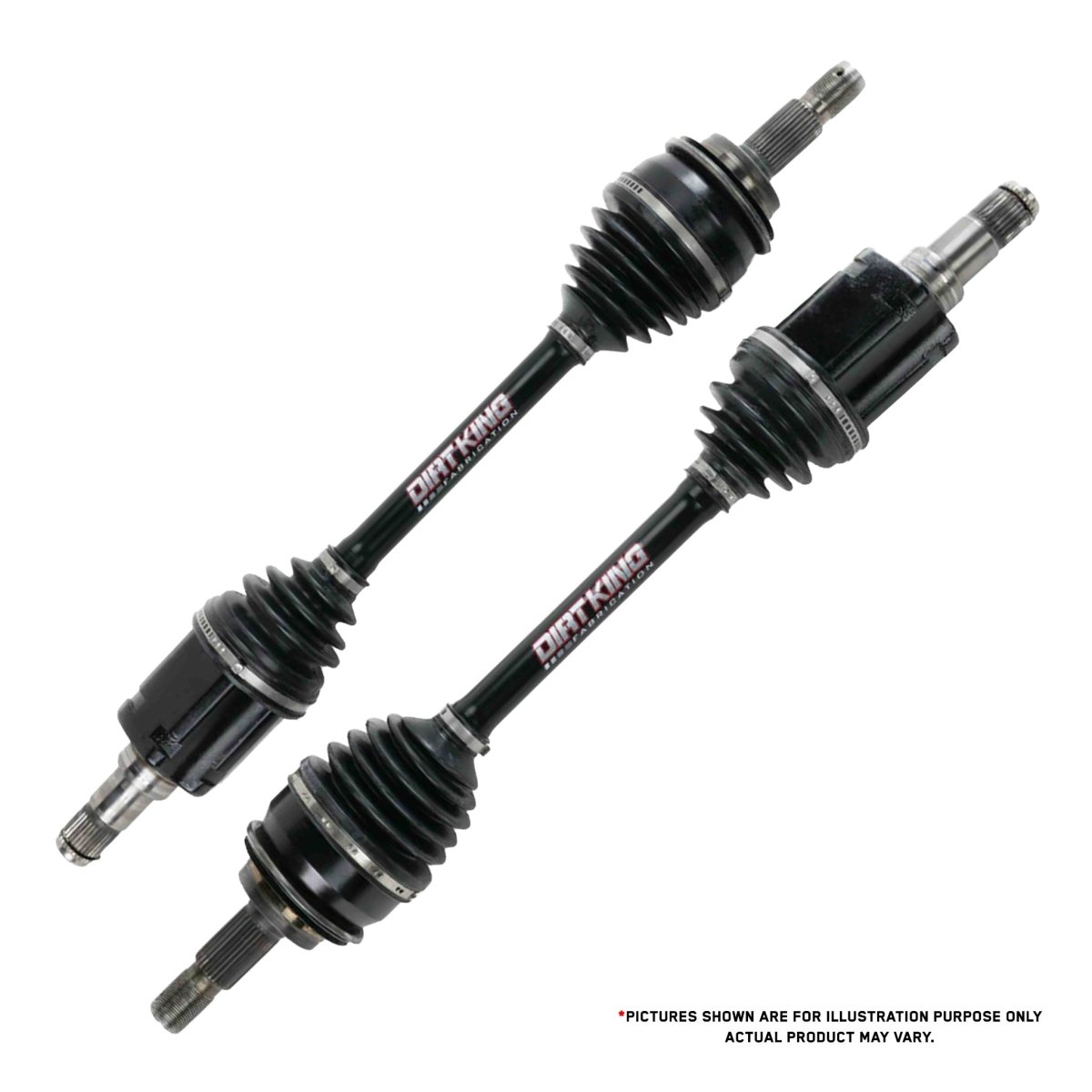

The Dirt King Long Travel Axle Assembly (DK‑812975) is a precision‑engineered extended axle solution designed to retain full 4WD driveline function when paired with a Dirt King long travel suspension system on vehicles such as Toyota 4Runner, FJ Cruiser, and Lexus GX models (4WD). Standard factory axle shafts are not long enough to accommodate the increased suspension articulation created by long travel systems, which can lead to binding, premature wear, or driveline failure. These extended axle assemblies eliminate that problem by providing the correct length and articulation range for smooth, reliable 4WD performance throughout the travel cycle.

Each assembly is built with high‑strength components and feature heat‑treated extended axle shafts that can be selected in either 4340 chromoly or a stronger 300M steel option depending on your performance needs. The axles are assembled around inspected OEM axle cores that are fitted with new CV boots and premium CV grease, ensuring long service life and dependable operation on‑road and off. These extended axle assemblies are engineered specifically for Dirt King long travel suspension kits and are not recommended for use with other manufacturers’ components.

Specifications

Drivetrain compatibility: 4WD vehicles with long travel suspension
Material options: 4340 chromoly or 300M steel
Axle cores: Inspected OEM components
CV protection: New CV boots included

Compatibility

Toyota 4Runner 4WD 2003-2024

Our long-travel axles are specifically engineered to work with our suspension kits. We do not recommend, nor can we guarantee, their compatibility or performance with products from other manufacturers.

Installation

Remove the stock front axle shafts and install the Dirt King Long Travel Axle Assemblies, ensuring correct CV orientation and engagement with the differential and knuckles. Torque all hardware to specification and verify proper boot sealing and drivetrain alignment before operating.
